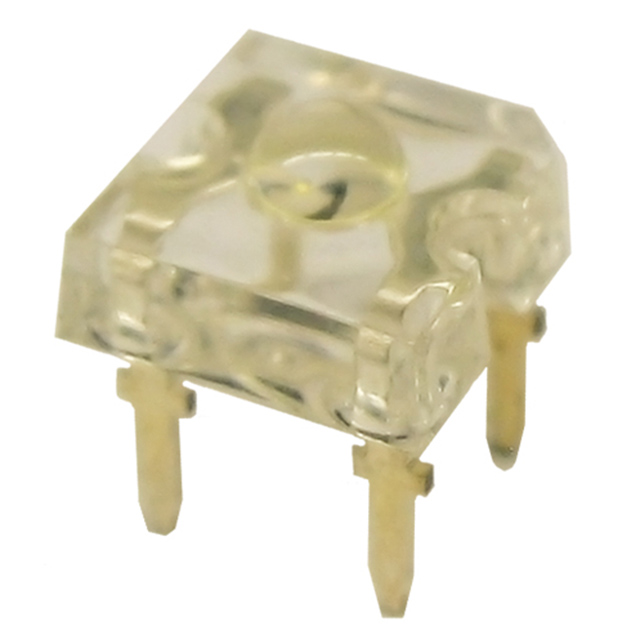

XSFWCB983W

Active

SunLED

LED 7.6MM SQ WH SMD

Search across all available documentation for this part.

Active

SunLED

LED 7.6MM SQ WH SMD

Technical Specifications

Parameters and characteristics for this part

Specification	XSFWCB983W

Current - Max [Max]	30 mA
Current - Test	30 mA
Flux @ 25°C, Current - Test	7 lm
Height - Seated (Max) [Max] [z]	0.238 in
Height - Seated (Max) [Max] [z]	6.05 mm
Lumens/Watt @ Current - Test	67 lm/W
Mounting Type	Through Hole
Package / Case	4-DIP
Package / Case	0.2 in
Package / Case	0.2 in
Size / Dimension [x]	0.299 in
Size / Dimension [x]	7.6 mm
Size / Dimension [y]	0.299 in
Size / Dimension [y]	7.6 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	180 °C/W
Viewing Angle	70 °
Voltage - Forward (Vf) (Typ)	3.5 V

Part	Supplier Device Package	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]
SunLED XSFWCB983W	SMD	67 lm/W	7 lm	30 mA	0.299 in	0.299 in	7.6 mm	7.6 mm	4-DIP	0.2 in	0.2 in	3.5 V	30 mA	70 °	Through Hole	0.238 in	6.05 mm	180 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10500	$ 0.55

General part information

LED Lighting - 3.5V 30mA 70° 4-DIP (0.200", 5.08mm)
