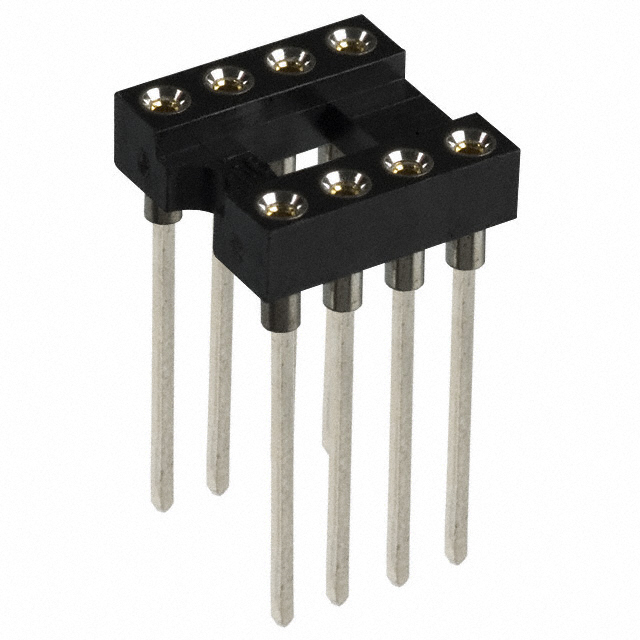

AR08-HZW/T

Obsolete

Assmann WSW Components

CONN IC DIP SOCKET 8POS GOLD

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN IC DIP SOCKET 8POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AR08-HZW/T

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	4 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Thermoplastic, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Wire Wrap
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material - Post	Current Rating (Amps)	Features	Contact Finish - Post	Type	Type	Type	Number of Positions or Pins (Grid)	Contact Finish - Mating	Termination	Pitch - Post	Pitch - Post	Contact Material - Mating	Mounting Type	Pitch - Mating	Pitch - Mating
Assmann WSW Components AR08-HZW/T	200 µin	5.08 µm	Polyester Thermoplastic	4 mOhm	-40 °C	105 ░C	UL94 V-0	Beryllium Copper	3 A	Open Frame	Tin	0.3 "	7.62 mm	DIP	8	Gold	Wire Wrap	2.54 mm	0.1 in	Beryllium Copper	Through Hole	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Technical documentation and resources
