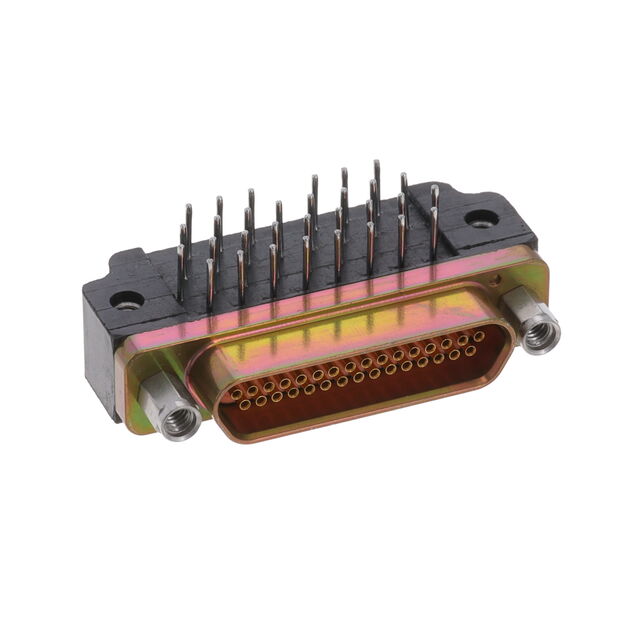

Specification	MDM-31SCBRP-TL56

Connector Layout Pitch	0.05
Connector Layout Row to Row	0.1
Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Finish	Yellow Chromate Plated Cadmium
Flange Feature	Female Screwlock (4-40), Mating Side
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	31
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Primary Material	Metal
Shell Material	Aluminum
Termination	Solder

MDM-3 Series

Part	Number of Positions	Current Rating	Connector Type	Connector Style	Contact Type	Mounting Type	Features	Contact Finish	Finish	Shell Material	Number of Rows	Flange Feature	Termination	Connector Layout Row to Row	Connector Layout Pitch	Contact Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Length	Shielding	Color	1st Connector	2nd Connector	Type
ITT Cannon, LLC MDM-31SSK	31	3 A	Female Sockets Receptacle	D-Type Micro-D	Signal	Panel Mount	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	2	Cable Side Male Jackscrew (2-56)	Solder Cup	0.043	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
ITT Cannon, LLC MDM-37SBSM7	37 pos	3 A	Female Sockets Receptacle	D-Type Micro-D	Signal	Panel Mount Through Hole	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	2	Female Screwlock (2-56) Mating Side	Solder	0.1	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
ITT Cannon, LLC MDM-31SBRM7-A174
ITT Cannon, LLC MDM-31PH016B-A174	31							Gold												0.5 ft	Unshielded	Individual Multiple	Male Pins Plug	Individual Wire Leads	D-Type Micro-D
ITT Cannon, LLC MDM-31SCBRM7	31	3 A	Female Sockets Receptacle	D-Type Micro-D	Signal	Panel Mount Right Angle Through Hole	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	4	Female Screwlock (2-56) Mating Side	Solder	0.1	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
ITT Cannon, LLC MDM-31PSL	31	3 A	Male Pins Plug	D-Type Micro-D	Signal	Panel Mount	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	2	Cable Side Male Jackscrew (2-56)	Solder Cup	0.043	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
ITT Cannon, LLC MDM-37PCBRM7-F222	37 pos	3 A	Male Pins Plug	D-Type Micro-D	Signal	Panel Mount Right Angle Through Hole	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	4	Female Screwlock (2-56) Mating Side	Solder	0.1	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	200 °C	-55 °C
ITT Cannon, LLC MDM-31SSP	31	3 A	Female Sockets Receptacle	D-Type Micro-D	Signal	Panel Mount	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	2	Female Screwlock (2-56) Mating Side	Solder Cup	0.043	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
ITT Cannon, LLC MDM-31PSB-A172	31	3 A	Male Pins Plug	D-Type Micro-D	Signal	Panel Mount	Shielded	Gold	Gold Plated	Aluminum	2	Housing Shell (Unthreaded)	Solder Cup	0.043	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
ITT Cannon, LLC MDM-37PBRP	37 pos	3 A	Male Pins Plug	D-Type Micro-D	Signal	Panel Mount Right Angle Through Hole	Shielded	Gold	Yellow Chromate Plated Cadmium	Aluminum	2	Female Screwlock (2-56) Mating Side	Solder	0.1	0.05	Copper Alloy	Liquid Crystal Polymer (LCP)	125 °C	-55 °C
