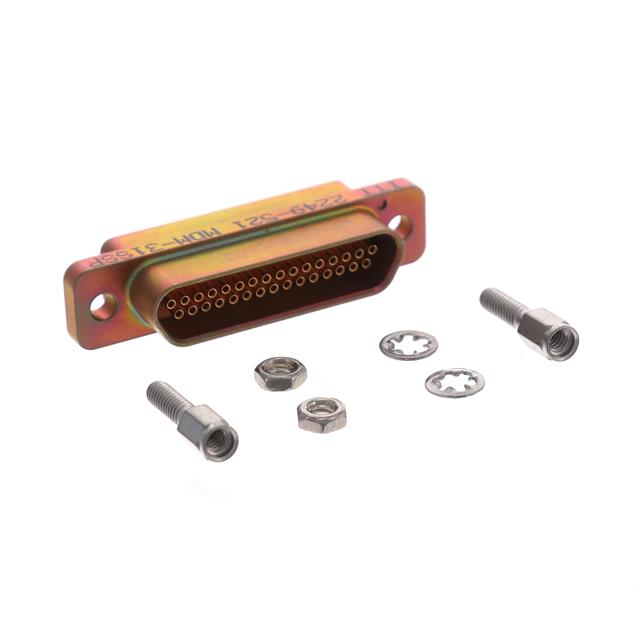

MDM-31SSP

Active

ITT Cannon, LLC

CONN MICRO-D RCPT 31POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicrominiature Catalog Datasheet

MDM-31SSP

Active

ITT Cannon, LLC

CONN MICRO-D RCPT 31POS PNL MNT

Deep-Dive with AI

DocumentsMicrominiature Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDM-31SSP

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded
Flange Feature	Mating Side, Female Screwlock (2-56)
Number of Positions	31
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

MDM-3 Series

Part	Contact Finish	Number of Positions	Contact Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Contact Material	Connector Type	Features	Connector Style	Number of Rows	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Mounting Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	1st Connector	Type	Color	2nd Connector	Length	Length	Length	Shielding	Shell Material, Finish [custom]	Shell Material, Finish [custom]
ITT Cannon, LLC MDM-31SSK	Gold	31	Signal	Liquid Crystal Polymer (LCP)	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	Copper Alloy	Receptacle Female Sockets	Shielded	D-Type Micro-D	2	Cable Side Male Jackscrew (2-56)	-55 °C	125 °C	3 A
ITT Cannon, LLC MDM-37SBSM7	Gold	37	Signal	Liquid Crystal Polymer (LCP)			Aluminum Yellow Chromate Plated Cadmium	Copper Alloy	Receptacle Female Sockets	Shielded	D-Type Micro-D	2	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	3 A	Solder	Panel Mount Through Hole	0.05	0.1
ITT Cannon, LLC MDM-31SBRM7-A174
ITT Cannon, LLC MDM-31PH016B-A174	Gold	31																			Plug Male Pins	D-Type Micro-D	Individual Multiple	Individual Wire Leads	152.4 mm	6 "	0.5 '	Unshielded
ITT Cannon, LLC MDM-31SCBRM7	Gold	31	Signal	Liquid Crystal Polymer (LCP)			Aluminum Yellow Chromate Plated Cadmium	Copper Alloy	Receptacle Female Sockets	Shielded	D-Type Micro-D		Female Screwlock (2-56) Mating Side	-55 °C	125 °C	3 A	Solder	Panel Mount Right Angle Through Hole	0.05	0.1
ITT Cannon, LLC MDM-31SSP	Gold	31	Signal	Liquid Crystal Polymer (LCP)	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	Copper Alloy	Receptacle Female Sockets	Shielded	D-Type Micro-D	2	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	3 A
ITT Cannon, LLC MDM-31PSB-A172	Gold	31	Signal	Liquid Crystal Polymer (LCP)	0.043	0.05		Copper Alloy	Male Pins Plug	Shielded	D-Type Micro-D	2	Housing/Shell (Unthreaded)	-55 °C	125 °C	3 A													Aluminum	Gold Plated
ITT Cannon, LLC MDM-37PBRP	Gold	37	Signal	Liquid Crystal Polymer (LCP)			Aluminum Yellow Chromate Plated Cadmium	Copper Alloy	Male Pins Plug	Shielded	D-Type Micro-D	2	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	3 A	Solder	Panel Mount Right Angle Through Hole	0.05	0.1
ITT Cannon, LLC MDM-37PSK	Gold	37	Signal	Liquid Crystal Polymer (LCP)	0.043	0.05	Aluminum Yellow Chromate Plated Cadmium	Copper Alloy	Male Pins Plug	Shielded	D-Type Micro-D	2	Cable Side Male Jackscrew (2-56)	-55 °C	125 °C	3 A
ITT Cannon, LLC MDM-37PBRP-A174	Gold	37	Signal	Liquid Crystal Polymer (LCP)			Aluminum Electroless Nickel Plated	Copper Alloy	Male Pins Plug	Shielded	D-Type Micro-D	2	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	3 A	Solder	Panel Mount Right Angle Through Hole	0.05	0.1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 242.11
		10	$ 224.36
		25	$ 216.29
Newark	Each	10	$ 238.12
		25	$ 228.53
		50	$ 215.75
		100	$ 212.55

Description

General part information

MDM-3 Series

31 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Microminiature Catalog

Datasheet
