936133-1

Active

TE Connectivity AMP Connectors

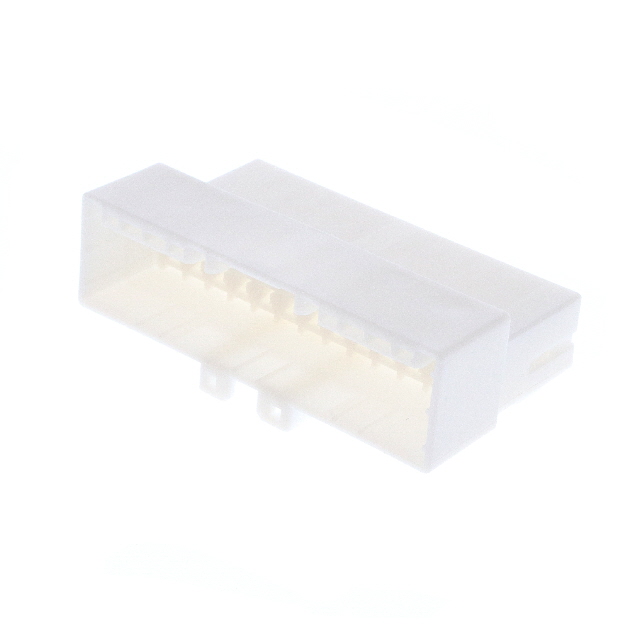

CONN RCPT HSG 26POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 26POS

Technical Specifications

Parameters and characteristics for this part

Specification	936133-1

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C

CONN RCPT HSG 26POS

Part	Insulation Material	Contact Type	Mounting Type	Contact Termination	Number of Positions	Color	Connector Type	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 936133-1	Polybutylene Terephthalate (PBT)	Tab	Free Hanging (In-Line)	Crimp	26	White	Receptacle	2	Contacts Not Included	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Rectangular Connectors - Housings Receptacle White
