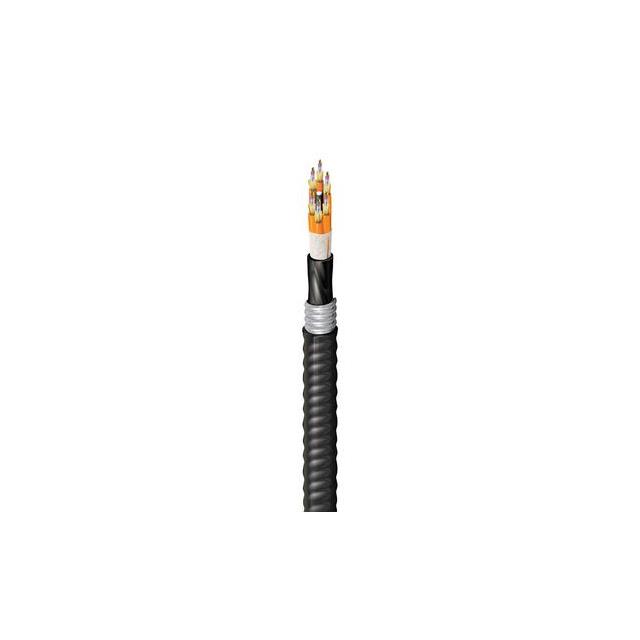

FD1D072FK

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FD1D072FK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	Armored, 72 Fibers
Jacket (Insulation) Diameter [diameter]	31.14 mm
Jacket (Insulation) Diameter [diameter]	1.226 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCR
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Multimode

Part	Jacket (Insulation) Material	Cladding Diameter [diameter]	Type	Core Diameter [diameter]	Tensile Strength	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Style	Jacket Color	Features	Features
Belden Inc. FD1D072AK	Poly-Vinyl Chloride (PVC)	125 µm	Multimode	62.5 µm	81.6 kg	-40 °C	70 °C	1.11 in	28.19 mm	OFCP	Multiple Fibers	Black	72 Fibers Armored
Belden Inc. FD1D072FK	Poly-Vinyl Chloride (PVC)	125 µm	Multimode	62.5 µm	81.6 kg	-40 °C	70 °C	1.226 in	31.14 mm	OFCR	Multiple Fibers	Black	72 Fibers Armored
Belden Inc. FD1D072LK		125 µm	Multimode	62.5 µm	81.6 kg	-40 °C	70 °C	0.823 in	20.9 mm	OFNR	Multiple Fibers	Black	Rip Cord	72 Fibers
Belden Inc. FD1D072PK	Poly-Vinyl Chloride (PVC)	125 µm	Multimode	62.5 µm	81.6 kg	-40 °C	70 °C	0.756 in	19.2 mm	OFNP	Multiple Fibers	Black	Rip Cord	72 Fibers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 19.36

General part information

Fiber Optic Cable Black Multimode 125µm
