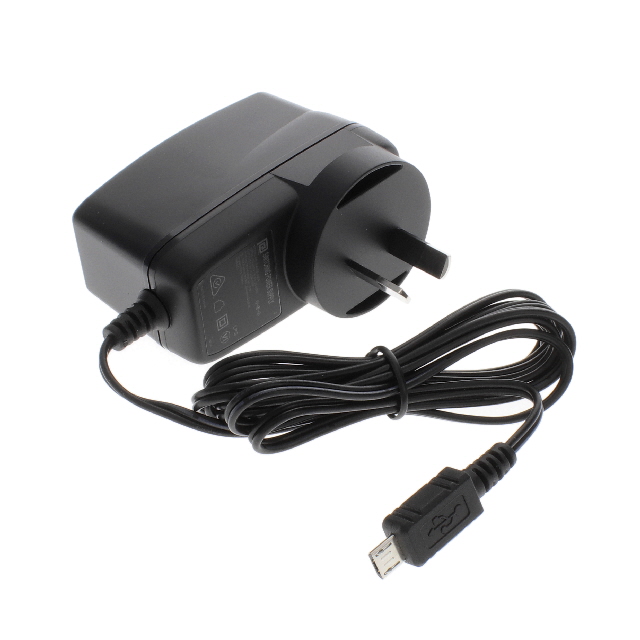

AA10S-050A(M)-R

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	AA10S-050A(M)-R

Applications	ITE (Commercial)
Approval Agency	AS/NZS
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	AS 3112
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB Micro
Power (Watts)	10 W
Region Utilized	Australia
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71.2 mm
Size / Dimension [y]	34 mm
Size / Dimension [y]	1.34 in
Size / Dimension [z]	55 mm
Size / Dimension [z]	2.17 "
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Form	Voltage - Output	Power (Watts)	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Input Type	Input Connector	Current - Output (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	No Load Power Consumption [Max]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Cord Length	Cord Length	Approval Agency	Output Connector	Applications
Phihong USA AA10S-050A(M)-R	Wall Mount (Class II)	5 V	10 W	Australia	90 VAC	264 VAC	Fixed Blade	AS 3112	2 A	Level VI	55 mm	34 mm	2.17 "	2.8 in	71.2 mm	1.34 in	75 mW	60950-1, 62368-1	40 °C	0 °C	1.5 m	59 in	AS/NZS	USB Micro	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
