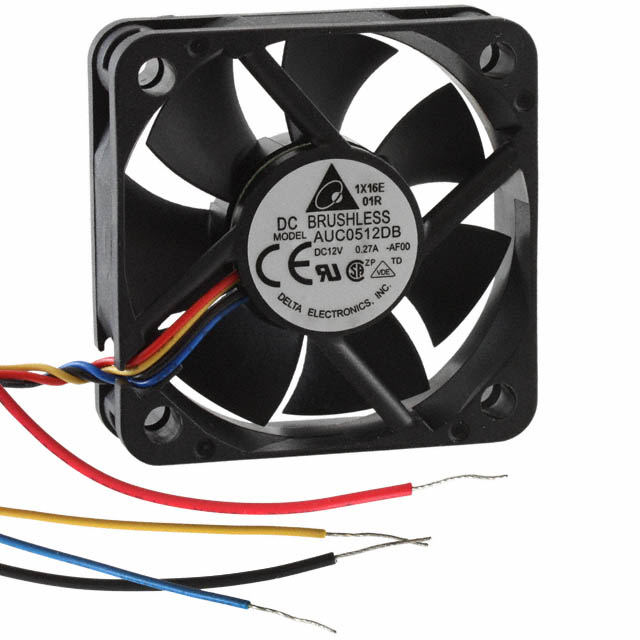

AUC0512DB-AF00

Active

Delta Electronics

FAN AXIAL 50X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 50X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AUC0512DB-AF00

Air Flow	20.2 CFM
Air Flow	0.566 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Superflo
Current Rating (Amps)	270 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.16 W
RPM	7400 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	74.5 Pa
Static Pressure	0.299 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	20.41 g
Weight	0.045 lb
Width [x]	15 mm

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Noise	Air Flow	Air Flow	RPM	Material - Frame	Static Pressure	Static Pressure	Current Rating (Amps)	Features	Weight	Weight	Approval Agency	Material - Blade	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Termination	Lifetime @ Temp.	Voltage - Rated	Width [x]
Delta Electronics AUC0512DB-AF00	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	2.16 W	13.2 VDC	10.8 VDC	38.5 dB	20.2 CFM	0.566 m³/min	7400 RPM	Plastic	74.5 Pa	0.299 in H2O	270 mA	Locked Rotor Protection PWM Control Speed Sensor (Tach)	20.41 g	0.045 lb	CE CSA UL VDE	Plastic	Superflo	50 mm	50 mm	4 Wire Leads	30000 Hrs	12 VDC	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Superflo 20.2 CFM (0.566m³/min) 4 Wire Leads
