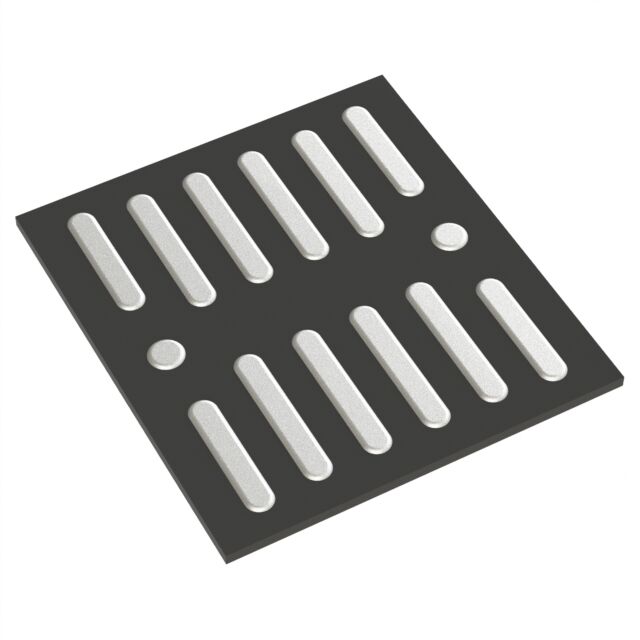

SSM14N956L,EFF

Active

Toshiba Semiconductor and Storage

MOSFET 2N-CH 12V 20A TCSPED

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

MOSFET 2N-CH 12V 20A TCSPED

Technical Specifications

Parameters and characteristics for this part

Specification	SSM14N956L,EFF

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	20 A
Drain to Source Voltage (Vdss)	12 V
Gate Charge (Qg) (Max) @ Vgs	76 nC
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	14-SMD, No Lead
Power - Max [Max]	1.33 W
Rds On (Max) @ Id, Vgs	1.35 mOhm
Supplier Device Package	TCSPED-302701
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.4 V

Part	Technology	Supplier Device Package	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Package / Case	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Operating Temperature	Power - Max [Max]	Rds On (Max) @ Id, Vgs	Configuration
Toshiba Semiconductor and Storage SSM14N956L,EFF	MOSFET (Metal Oxide)	TCSPED-302701	12 V	1.4 V	14-SMD No Lead	Surface Mount	76 nC	20 A	150 °C	1.33 W	1.35 mOhm	2 N-Channel (Dual)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 12V 20A (Ta) 1.33W (Ta) Surface Mount TCSPED-302701
