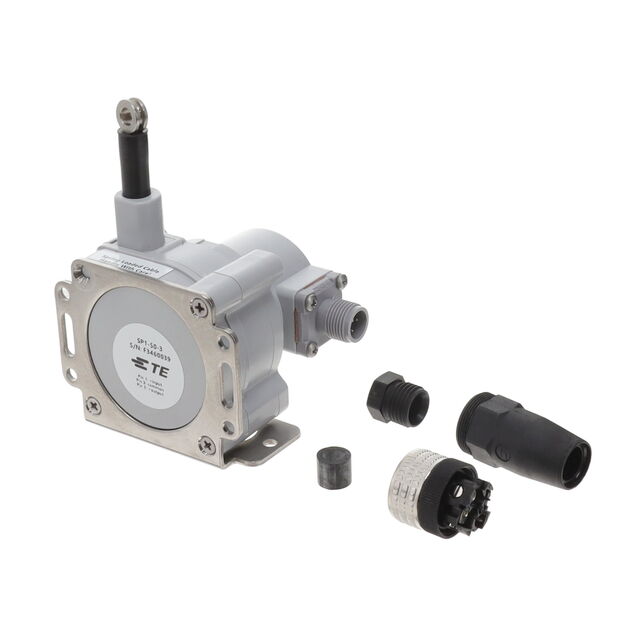

SP1-50-3

Active

TE Connectivity Measurement Specialties

STRING POT 50.0 INCH RANGE

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

STRING POT 50.0 INCH RANGE

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR LINEAR 120MM SOLDER LUG

Part	Output	Package / Case	Technology	Resistance	Linear Range [Max]	Linear Range [Min]	Linear Range [Max]	Linear Range [Min]	Actuator Type	Termination Style	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Resistance Tolerance	For Measuring
TE Connectivity Measurement Specialties SP1-4	Analog Voltage	Box with Connector	Resistive	10000 Ohms	4.75 in	0 in	120 mm	0 mm	String Potentiometer	Solder Lug	30 VDC	70 °C	-18 °C	10%	Linear Position
TE Connectivity Measurement Specialties SP1-25	Analog Voltage	Box with Connector	Resistive	10000 Ohms	25 in	0 in	635 mm	0 mm	String Potentiometer	Solder Lug	30 VDC	70 °C	-18 °C	10%	Linear Position
TE Connectivity Measurement Specialties SP1-50-3
TE Connectivity Measurement Specialties SP1-25-3
TE Connectivity Measurement Specialties SP1-12-3	Analog Voltage	Box with Connector	Resistive	10000 Ohms	50 in	0 in	1270 mm	0 mm	String Potentiometer	Connector	30 VDC	70 °C	-40 °C	10%	Linear Position

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

STRING POT 50.0 INCH RANGE

Technical documentation and resources
