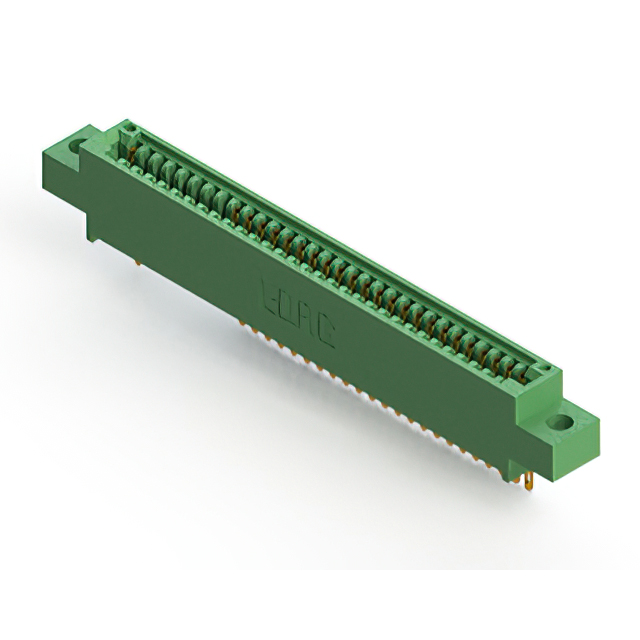

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-031-500-604
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-031-500-604 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
345-031 Series
...
| Part | Termination | Contact Material | Color | Gender | Number of Positions | Contact Type | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Material - Insulation | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Contact Finish | Termination Rows | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Eyelet(s) | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | |||
EDAC Inc. | Solder | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | |||||
EDAC Inc. | Solder | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | |||
EDAC Inc. | Solder | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | |||
EDAC Inc. | Solder | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | Card Guides | ||||
EDAC Inc. | Wire Wrap | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Wire Wrap | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Wire Wrap | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole Right Angle | Single | Gold | 1 | |||||
EDAC Inc. | Solder Eyelet(s) | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 | Card Guides | ||||
EDAC Inc. | Wire Wrap | Copper Alloy | Green | Female | 31 | Cantilever | 31 | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole | Single | Gold | 1 |
