6238B-MTG

Active

Boyd Laconia, LLC

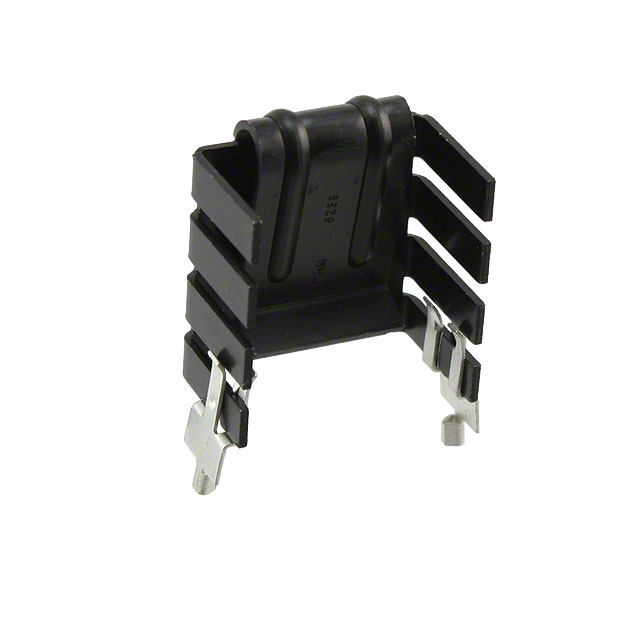

BOARD LEVEL HEATSINK .61" TO-220

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

BOARD LEVEL HEATSINK .61" TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	6238B-MTG

Attachment Method	Clip, PC Pin
Length	29.44 mm
Length	1.159 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2 W, 40 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	6 °C/W, 600 LFM
Thermal Resistance @ Natural	13.6 °C/W
Type	Board Level, Vertical
Width [x]	1.005 in
Width [x]	25.53 mm

Part	Power Dissipation @ Temperature Rise	Attachment Method	Length	Length	Thermal Resistance @ Forced Air Flow	Material Finish	Material	Width [x]	Width [x]	Package Cooled	Thermal Resistance @ Natural	Type	Shape
Boyd Laconia, LLC 6238BG	2 W 40 °C	Clip	29.44 mm	1.159 "	6 °C/W 600 LFM	Black Anodized	Aluminum	1.005 in	25.53 mm	TO-220	13.6 °C/W	Board Level Vertical	Rectangular Fins
Boyd Laconia, LLC 6238B-MTG	2 W 40 °C	Clip PC Pin	29.44 mm	1.159 "	6 °C/W 600 LFM	Black Anodized	Aluminum	1.005 in	25.53 mm	TO-220	13.6 °C/W	Board Level Vertical	Rectangular Fins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level, Vertical
