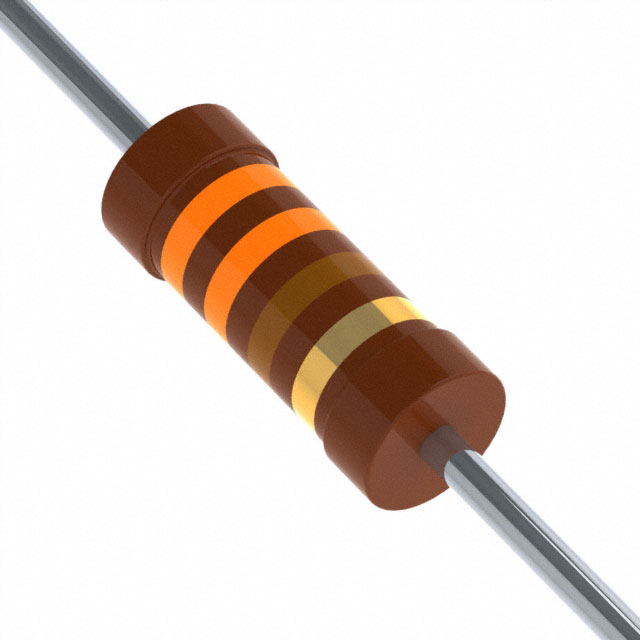

CBT50J330R

Obsolete

TE Connectivity Passive Product

RES 330 OHM 5% 1/2W AXIAL

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

RES 330 OHM 5% 1/2W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	CBT50J330R

Composition	Carbon Composition
Features	Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance	330 Ohms
Supplier Device Package	Axial
Temperature Coefficient [Max]	200 ppm/°C
Temperature Coefficient [Min]	-600 ppm/°C
Tolerance	5 %

Part	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Features	Power (Watts)	Power (Watts)	Number of Terminations	Composition	Resistance
TE Connectivity Passive Product CBT50J1K5	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	5 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	1500 Ohms
TE Connectivity Passive Product CBT50K2K7	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	10 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	2.7 kOhms
TE Connectivity Passive Product CBT50J4M7	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	5 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	4.7 MOhms
TE Connectivity Passive Product CBT50J330R	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	5 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	330 Ohms
TE Connectivity Passive Product CBT50J33R	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	5 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	33 Ohms
TE Connectivity Passive Product CBT50K680R	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	10 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	680 Ohms
TE Connectivity Passive Product CBT50J220R	-600 ppm/°C	200 ppm/°C	Axial	Axial	-55 °C	125 °C	5 %	Pulse Withstanding	0.5 W	0.5 W	2	Carbon Composition	220 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

330 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Pulse Withstanding Carbon Composition
