17282-2PG-300

Active

Conxall/Switchcraft

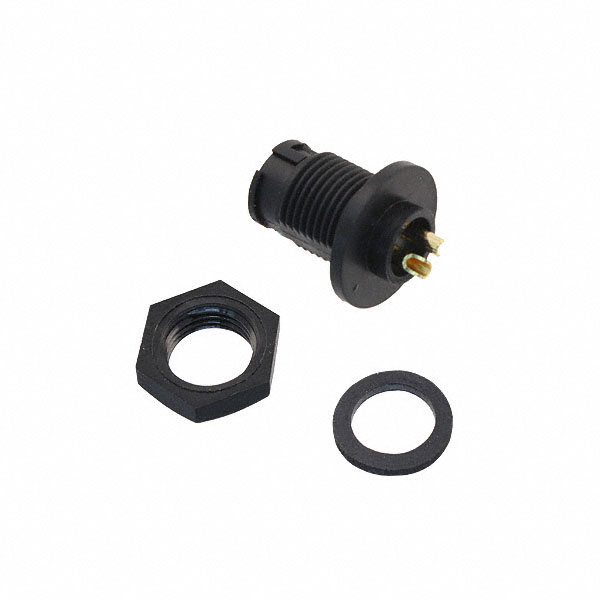

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17282-2PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT MALE 2P GOLD SLDR CUP

Part	Applications	Orientation	Fastening Type	Mounting Feature	Number of Positions	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Shielding	Voltage Rating	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material
Conxall/Switchcraft 17282-2PG-300	Data, Industrial, Instrumentation, Medical	Keyed	Bayonet Lock	Bulkhead - Front Side Nut	2	Plastic	7.5 A	Gold	IP67 - Dust Tight, Waterproof	Unshielded	600 VAC	UL94 HB	Male Pins, Receptacle	85 °C	-40 °C	Black	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
