5502FE 008U500
ActiveBelden Inc.

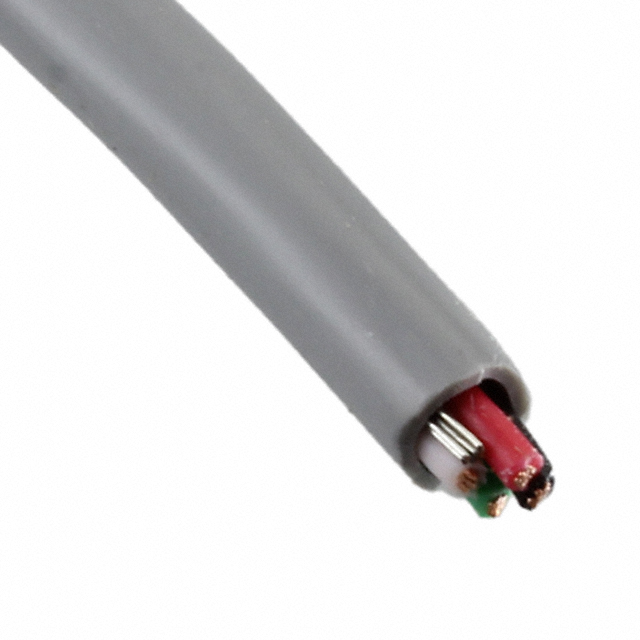

CABLE 4COND 22AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5502FE 008U500
ActiveBelden Inc.
CABLE 4COND 22AWG GRAY SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5502FE 008U500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.145 in |
| Jacket (Insulation) Diameter [diameter] | 3.68 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.432 mm |
| Jacket (Insulation) Thickness | 0.017 in |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Ratings | UL Style CMR |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 0.24 | |
| 1000 | $ 0.22 | |||
| 1500 | $ 0.22 | |||
| 2500 | $ 0.21 | |||
| 3500 | $ 0.21 | |||
| 5000 | $ 0.20 | |||
| 12500 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
| 50000 | $ 0.17 | |||
Description
General part information
5502FE Series
4 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)
