APBA3010SEKCGKC-GX

Active

Kingbright

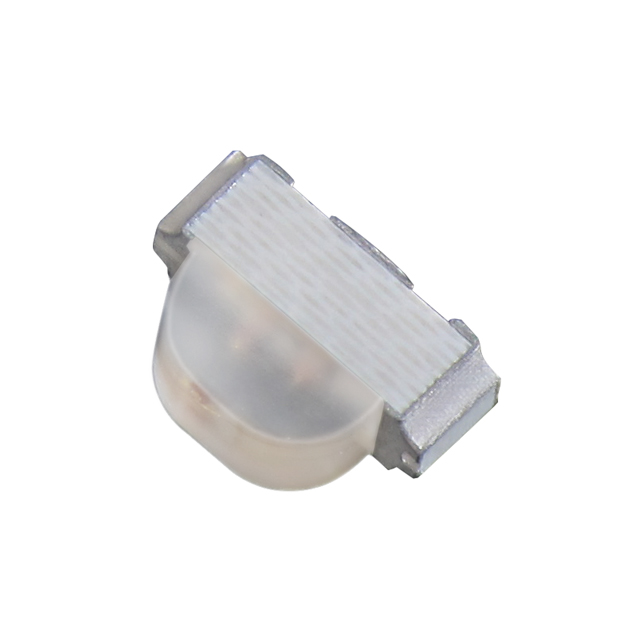

LED GREEN/ORANGE CLEAR 2SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APBA3010SEKCGKC-GX

Active

Kingbright

LED GREEN/ORANGE CLEAR 2SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APBA3010SEKCGKC-GX

Color	Orange, Green
Configuration	Common Anode
Current - Test	20 mA, 20 mA
Height (Max) [Max]	1.15 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1 mm
Lens Style	Rectangle with Domed Top
Lens Transparency	Clear
Millicandela Rating	320 mcd, 70 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2 mm
Supplier Device Package	2-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.1 V, 2.1 V
Wavelength - Dominant	601 nm, 570 nm
Wavelength - Peak	610 nm, 574 nm

APBA3010 Series

Part	Wavelength - Dominant	Viewing Angle	Lens Size [x]	Lens Size [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Millicandela Rating	Wavelength - Peak	Configuration	Supplier Device Package	Mounting Type	Package / Case	Lens Color	Lens Transparency	Lens Style	Current - Test	Color	Height (Max) [Max] [z]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Dominant [custom]
Kingbright APBA3010SEKCGKC-GX	570 nm 601 nm	140 °	2 mm	1 mm	2 mm	3 mm	2.1 V 2.1 V	1.15 mm	70 mcd 320 mcd	574 nm 610 nm	Common Anode	2-SMD	Surface Mount Right Angle	2-SMD No Lead	Colorless	Clear	Rectangle with Domed Top	20 mA 20 mA	Green Orange
Kingbright APBA3010ESGC-GX	568 nm 617 nm	140 °	2 mm	1 mm	2 mm	3 mm	2 V 2.2 V		8 mcd 15 mcd	565 nm 627 nm	Common Anode	Chip LED	Surface Mount Right Angle	3-SMD No Lead	Colorless	Clear	Rectangle with Domed Top	20 mA 20 mA	Green Red	1 mm
Kingbright APBA3010SYKCGKC-GX	570 nm 590 nm	140 °	2 mm	1 mm	2 mm	3 mm	2 V 2.1 V			574 nm 590 nm	Common Anode	Chip LED	Surface Mount Right Angle	3-SMD No Lead	Colorless	Clear	Rectangle with Domed Top	20 mA 20 mA	Green Yellow	1 mm	120 mcd	70 mcd
Kingbright APBA3010EYC-GX		140 °	2 mm	1 mm	2 mm	3 mm	2 V 2.1 V		8 mcd 8 mcd	590 nm 627 nm	Common Anode	Chip LED	Surface Mount Right Angle	3-SMD No Lead	Colorless	Clear	Rectangle with Domed Top		Red Yellow	1 mm			20mA Red 20mA Yellow	588 nm 617 nm
Kingbright APBA3010YSGC-GX	568 nm 588 nm	140 °	2 mm	1 mm	2 mm	3 mm	2.1 V 2.2 V			565 nm 590 nm	Common Anode	Chip LED	Surface Mount Right Angle	3-SMD No Lead	Colorless	Clear	Rectangle with Domed Top	20 mA 20 mA	Green Yellow	1 mm	8 mcd	15 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.60
		10	$ 0.37
		100	$ 0.21
		1000	$ 0.17
	Digi-Reel®	1	$ 0.60
		10	$ 0.37
		100	$ 0.21
		1000	$ 0.17
	Tape & Reel (TR)	2000	$ 0.15
		6000	$ 0.14
		10000	$ 0.13
		50000	$ 0.12

Description

General part information

APBA3010 Series

Green, Orange 570nm Green, 601nm Orange LED Indication - Discrete 2.1V Green, 2.1V Orange 2-SMD, No Lead
