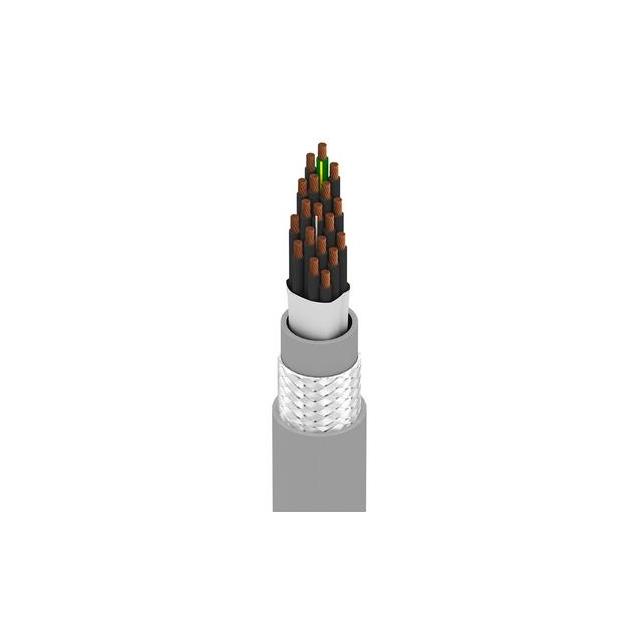

7428WS 060250

Active

Belden Inc.

CABLE 18COND 16AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 18COND 16AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7428WS 060250

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.714 "
Jacket (Insulation) Diameter [diameter]	18.14 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Chrome
Length	3000 "
Length	76.2 m
Number of Conductors	18
Ratings	UL Style 20328
Wire Gauge	16 AWG

Part	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Ratings	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Conductor Material	Conductor Insulation
Belden Inc. 7428WS 060250	Multi-Conductor	1.6 mm	0.063 in	Oil Resistant UV Resistant	UL Style 20328	18	30 AWG	26	Chrome	16 AWG	Thermoplastic Elastomer (TPE)	0.714 "	18.14 mm	3000 "	76.2 m	Copper Bare	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 23.53

General part information

18 Conductor Multi-Conductor Cable Chrome 16 AWG 250.0' (76.2m)
