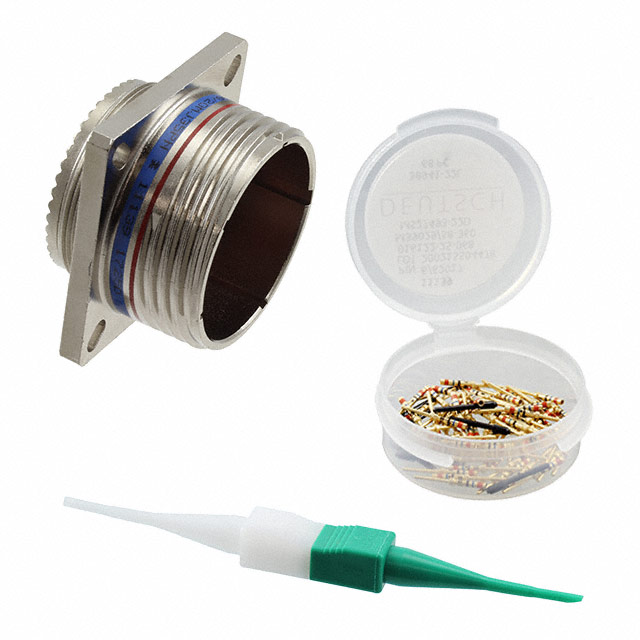

D38999/20ME35PN - D38999^20MJ35PN

D38999/20ME35PN

Active
TE Connectivity Raychem Cable Protection

CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
D38999/20ME35PN - D38999^20MJ35PN

D38999/20ME35PN

Active
TE Connectivity Raychem Cable Protection

CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationD38999/20ME35PN
ApplicationsIndustrial, Aviation, Communication Systems, Military
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact Finish Thickness - Mating1.27 µm
Contact Finish Thickness - Mating50 µin
Contact MaterialCopper Alloy
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialThermoplastic
Mounting FeatureFlange
Number of Positions55 positions
Operating Temperature [Max]200 °C
Operating Temperature [Min]-65 ░C
OrientationN
Primary MaterialComposite
QualificationMIL-DTL-38999 Series III
Shell FinishElectroless Nickel
Shell MaterialComposite
Shell Size - Insert [Max]35
Shell Size - Insert [Min]17
Shell Size, MILE
ShieldingShielded
TerminationCrimp
Voltage Rating550 VDC, 400 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 156.21
10$ 122.91
25$ 112.01
50$ 105.57
100$ 98.03
Bulk 1$ 41.46
LCSCN/A 1$ 0.00

Description

General part information

D38999/20ME Series

CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
