14-432.036
ActiveEAO

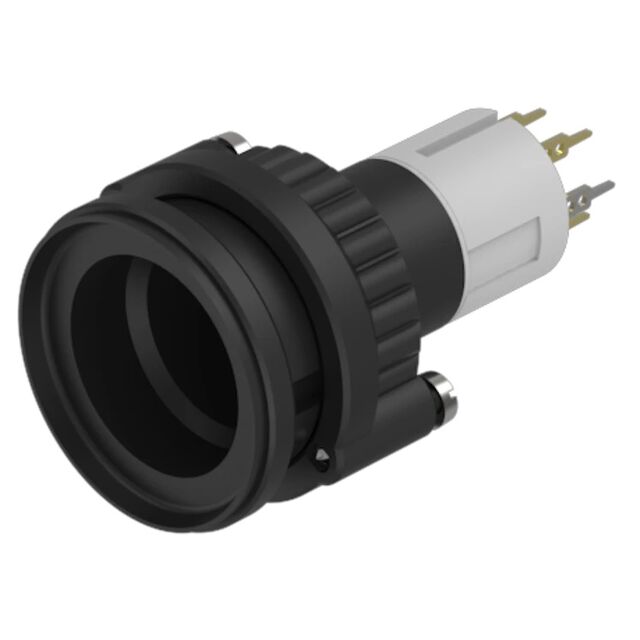

SWITCH PB DPST-NC 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
14-432.036
ActiveEAO
SWITCH PB DPST-NC 0.1A 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 14-432.036 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | DPST-NC |
| Current Rating (Amps) | 100 mA |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | On-Mom |
| Termination Style | PC Pin, Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.06 | |
| 10 | $ 32.81 | |||
| 25 | $ 31.29 | |||
| 50 | $ 29.19 | |||
| 100 | $ 28.04 | |||
| 250 | $ 26.14 | |||
14-432 Series
SWITCH PB DPST-NC 0.1A 42V
| Part | Panel Cutout Dimensions [diameter] | Circuit | Voltage Rating - DC | Voltage Rating - AC | Ingress Protection | Mechanical Life | Current Rating (Amps) | Actuator Marking | Switch Function | Termination Style | Mounting Type | Actuator Type | Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 14-432.036 | 22.3 mm | DPST-NC | 42 V | 42 V | IP67 - Dust Tight, Waterproof | 5000000 Cycles | 100 mA | No Marking | On-Mom | PC Pin, Solder Lug | Panel Mount, Front | Round, Button (Not Included) | Standard | 55 °C | -25 °C |
Description
General part information
14-432 Series
Pushbutton Switch DPST-NC Standard Panel Mount, Front
