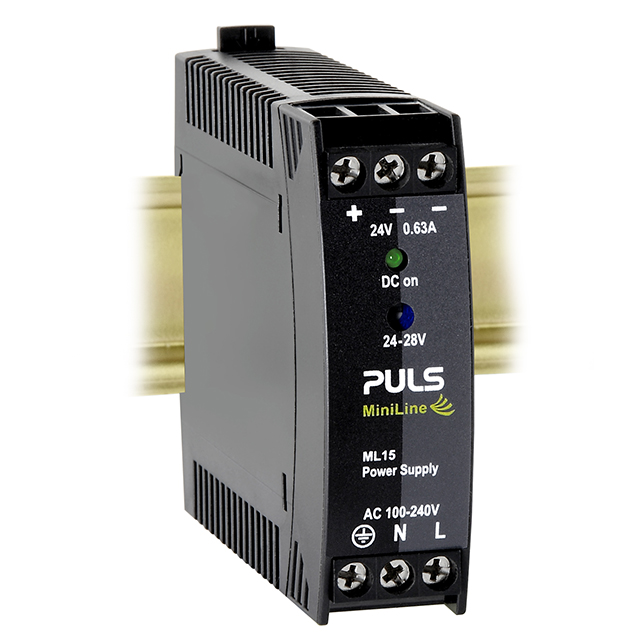

ML15.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 15W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 15W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.50

General part information

AC/DC DIN RAIL SUPPLY 24V 15W

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ML15.241	ML15 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	DNV GL, CSA, EAC, IEC, ABS, NEC, UL	DNV GL, CSA, EAC, IEC, ABS, NEC, UL
Current - Output (Max) [Max]	630 mA	1.3 - 630 A
Efficiency	86.1 %	77.2 - 86.1 %
Features	Adjustable Output, Load Sharing	Adjustable Output, Load Sharing
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	15 W	15 W
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	5 - 24 V

AC/DC DIN RAIL SUPPLY 12V 15W

Part	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Power (Watts)	Input Type	Approval Agency	Features	Operating Temperature [Max]	Applications	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]
PULS, LP ML15.121	12 V	1	500 V	15 W	AC	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	Adjustable Output, Load Sharing	70 °C	ITE (Commercial)	83 %	85 VAC	264 VAC	1.3 A
PULS, LP ML15.051	5 V	1	500 V	15 W	AC	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	Adjustable Output, Load Sharing	70 °C	ITE (Commercial)	77.2 %	85 VAC	264 VAC	3 A
PULS, LP ML15.241	24 V	1	500 V	15 W	AC	ABS, CSA, DNV GL, EAC, IEC, NEC, UL	Adjustable Output, Load Sharing	70 °C	ITE (Commercial)	86.1 %	85 VAC	264 VAC	630 mA
