VOH1016AG-V

Active

Vishay General Semiconductor - Diodes Division

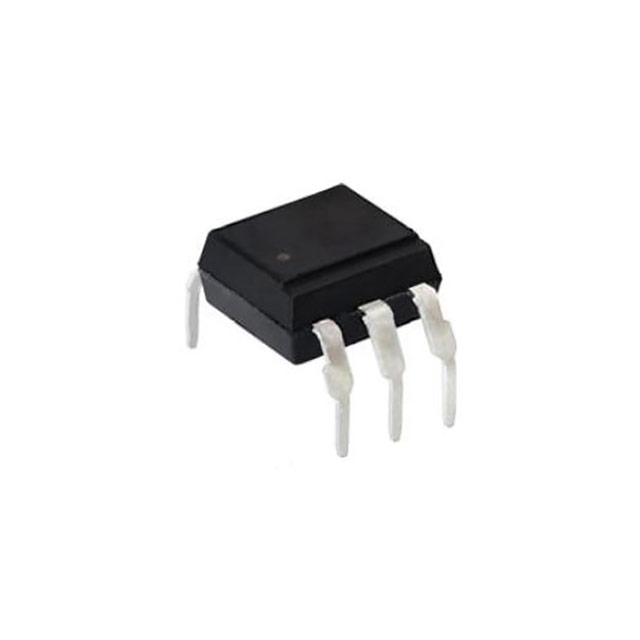

OPTOCOUPLER LOGIC-OUT DC-IN 1-CH 6-PIN DIP TUBE

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

OPTOCOUPLER LOGIC-OUT DC-IN 1-CH 6-PIN DIP TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	VOH1016AG-V

Common Mode Transient Immunity (Min) [Min]	10 kV/µs
Current - DC Forward (If) (Max) [Max]	50 mA
Current - Output / Channel	50 mA
Data Rate	2 MHz
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Package / Case	6-DIP
Package / Case	10.16 mm
Package / Case	10.16 mm
Propagation Delay tpLH / tpHL (Max) [custom]	2 µs
Propagation Delay tpLH / tpHL (Max) [custom]	1.2 µs
Rise / Fall Time (Typ) [custom]	40 ns
Rise / Fall Time (Typ) [custom]	50 ns
Supplier Device Package	6-DIP
Voltage - Forward (Vf) (Typ)	1.1 V
Voltage - Supply	16 VDC

Part	Package / Case	Package / Case	Package / Case	Number of Channels	Inputs - Side 1/Side 2 [custom]	Mounting Type	Output Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Voltage - Supply	Data Rate	Current - Output / Channel	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Input Type
Vishay General Semiconductor - Diodes Division VOH1016AG-V	6-DIP	10.16 mm	10.16 mm	1	1	Through Hole	Open Collector	40 ns	50 ns	6-DIP	10 kV/µs	16 VDC	2 MHz	50 mA	2 µs	1.2 µs	1.1 V	100 °C	-40 °C	50 mA	DC
Vishay General Semiconductor - Diodes Division VOH1016AB-VT	6-SMD Gull Wing			1	1	Surface Mount	Open Collector	40 ns	50 ns	6-SMD	10 kV/µs	16 VDC	2 MHz	50 mA	2 µs	1.2 µs	1.1 V	100 °C	-40 °C	50 mA	DC
Vishay General Semiconductor - Diodes Division VOH1016AG	6-DIP	10.16 mm	10.16 mm	1	1	Through Hole	Open Collector	40 ns	50 ns	6-DIP	10 kV/µs	16 VDC	2 MHz	50 mA	2 µs	1.2 µs	1.1 V	100 °C	-40 °C	50 mA	DC
Vishay General Semiconductor - Diodes Division VOH1016AB-VT2	6-SMD Gull Wing			1	1	Surface Mount	Open Collector	40 ns	50 ns	6-SMD	10 kV/µs	16 VDC	2 MHz	50 mA	2 µs	1.2 µs	1.1 V	100 °C	-40 °C	50 mA	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 2MHz Open Collector 5000Vrms 1 Channel 10kV/µs CMTI 6-DIP
