Q-1W0690008060i

Active

Amphenol Custom Cable

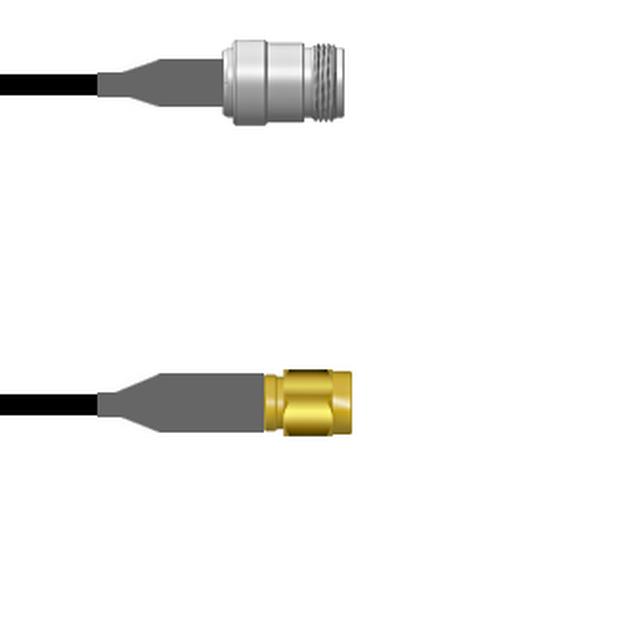

CBL ASSY RPSMA-NTYPE PLG-JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W0690008060i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PLG-JACK 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W0690008060i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-1W0690 Series

Part	1st Contact Gender	Cable Type	2nd Contact Gender	Style	Length	Length	Length	1st Connector Mounting Type	Frequency - Max [Max]	Color	Overall Impedance	2nd Connector	Features	1st Connector	2nd Connector Mounting Type
Amphenol Custom Cable Q-1W06900082.5M	Female	RG-58	Female	RP-SMA to N-Type	8.2 '	98.4 in	2.5 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008003M	Female	RG-58	Female	RP-SMA to N-Type	9.8 '	118.1 in	3 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008001M	Female	RG-58	Female	RP-SMA to N-Type	3.3 ft	39.4 in	1 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008108i	Female	RG-58	Female	RP-SMA to N-Type	9 ft	108 in	2.7 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008.75M	Female	RG-58	Female	RP-SMA to N-Type		29.53 "	750 mm	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008006i	Female	RG-58	Female	RP-SMA to N-Type		6 in	152.4 mm	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008002M	Female	RG-58	Female	RP-SMA to N-Type	6.6 ft	78.7 in	2 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008009i	Female	RG-58	Female	RP-SMA to N-Type		9 "	228.6 mm	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008084i	Female	RG-58	Female	RP-SMA to N-Type	7 ft	84 in	2.1 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-1W0690008060i	Female	RG-58	Female	RP-SMA to N-Type	5 ft	5 '	1.5 m	Free Hanging (In-Line)	11 GHz	Black	50 Ohms	N-Type Jack	Shielded	RP-SMA Plug	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.15
		25	$ 76.30
		50	$ 75.46
		100	$ 74.61
		250	$ 73.77

Description

General part information

Q-1W0690 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-58 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
