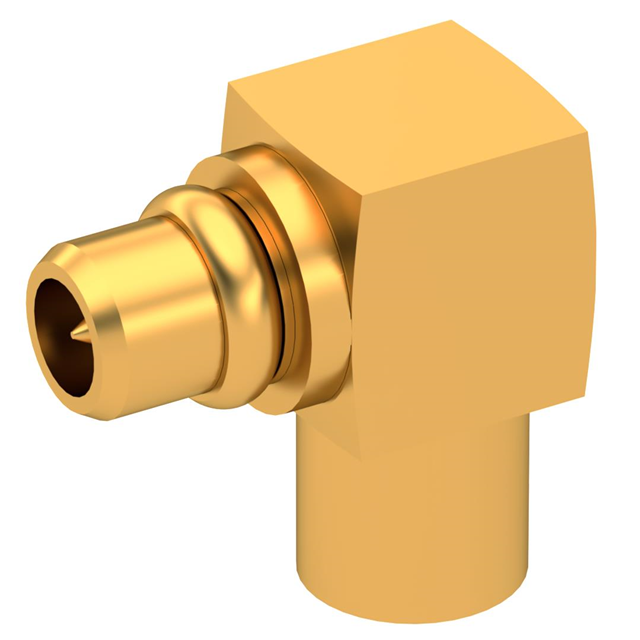

R110153000

Active

Radiall USA, Inc.

MMCX M RA SD .085

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMCX M RA SD .085

Technical Specifications

Parameters and characteristics for this part

Specification	R110153000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Includes	Cable Group	Center Contact Material	Impedance	Voltage Rating	Number of Ports	Body Finish	Dielectric Material	Shield Termination	Fastening Type	Connector Style	Contact Termination	Housing Color	Frequency - Max [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Connector Type	Body Material	Mating Cycles
Radiall USA, Inc. R110153000	1 Connector 1 End Cap	RG-405 (.085" Semi Rigid)	Brass	50 Ohms	250 VDC	1	Gold	Polytetrafluoroethylene (PTFE)	Solder	Snap-On	MMCX	Solder	Gold	6000 MHz	Free Hanging (In-Line) Right Angle	155 °C	-55 °C	Gold	Male Pin Plug	Brass	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
