ADT-2715-NF-3MF-02

Active

Cinch Connectivity Solutions Midwest Microwave

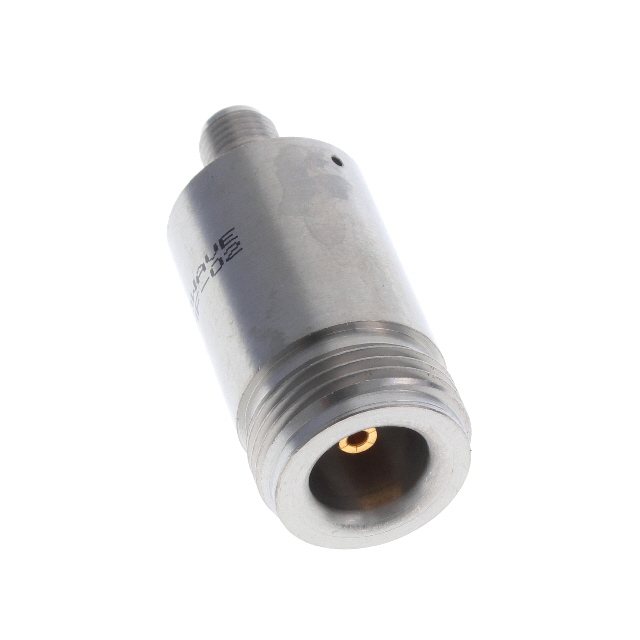

CONN ADAPT 3.5MM JACK TO N JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT 3.5MM JACK TO N JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2715-NF-3MF-02

Adapter Series	3.5 mm
Adapter Series	N
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	3.5mm Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT 3.5MM JACK TO N JACK

Part	Adapter Type	Center Contact Material	Convert From (Adapter End)	Center Contact Plating	Convert To (Adapter End)	Style	Center Gender	Adapter Series	Adapter Series	Impedance	Body Material	Conversion Type	Frequency - Max [Max]	Mounting Type	Dielectric Material
Cinch Connectivity Solutions Midwest Microwave ADT-2715-NF-3MF-02	Jack to Jack	Beryllium Copper	3.5mm Jack, Female Socket	Gold	Female Socket, N Jack	Straight	Female to Female	3.5 mm	N	50 Ohms	Stainless Steel	Between Series	18 GHz	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 3.5mm Jack, Female Socket To N Jack, Female Socket 50 Ohms
