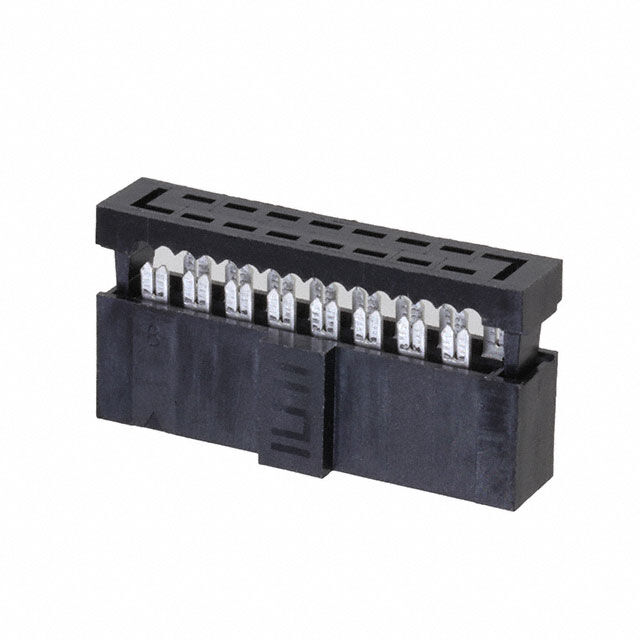

HCSD-08-01-N
ActiveSamtec Inc.
CONN RCPT 16POS IDC 28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
HCSD-08-01-N
ActiveSamtec Inc.
CONN RCPT 16POS IDC 28AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HCSD-08-01-N |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Type | Female Socket |
| Features | Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.85 | |
| 10 | $ 2.42 | |||
| 25 | $ 2.27 | |||
| 50 | $ 2.16 | |||
| 100 | $ 2.06 | |||
| 250 | $ 1.93 | |||
| 500 | $ 1.84 | |||
| 1000 | $ 1.75 | |||
| 2500 | $ 1.70 | |||
Description
General part information
HCSD-08 Series
16 Position Rectangular Socket Connector IDC Gold 28 AWG
