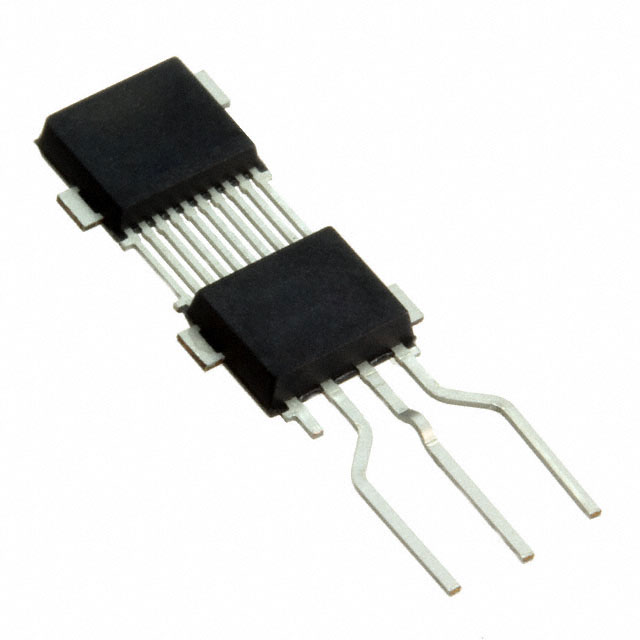

Specification	MLX90364LVS-ADD-203-SP

Actuator Type	Not Included, External Magnet
For Measuring	Linear, Rotary Position
Grade	Automotive
Linearity Tolerance	2.5 °
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Output	Analog, PWM
Package / Case	Formed Leads, 4-SIP Module
Package Name	4-DMP
Qualification	AEC-Q100
Rotation Angle - Electrical, Mechanical (Maximum)	360 °
Rotation Angle - Electrical, Mechanical (Minimum)	0 °
Rotation Angle - Electrical, Mechanical (Mode)	Continuous
Technology	Hall Effect
Termination Style	PC Pin
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.5 V

MLX90364 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	For Measuring	Actuator Type	Output	Rotation Angle - Electrical, Mechanical (Mode)	Rotation Angle - Electrical, Mechanical (Maximum)	Termination Style	Linearity Tolerance	Qualification	Package / Case	Grade	Mounting Type	Package Name	Technology
Melexis Technologies NV MLX90364LVS-ADB-203-RE	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADB-203-SP	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADD-201-RE	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADD-200-TU	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADE-201-SP	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADD-203-SP	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADB-200-SP	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADD-201-RX	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADD-200-SP	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module	Automotive	Through Hole	4-DMP	Hall Effect
Melexis Technologies NV MLX90364LVS-ADD-251-RE	5.5 V	4.5 V	-40 °C	150 °C	Linear Rotary Position	External Magnet Not Included	Analog PWM	Continuous	360 °	PC Pin	2.5 °	AEC-Q100	4-SIP Module Formed Leads	Automotive	Through Hole	4-DMP	Hall Effect

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PTC-04, Daughterboard Selection Guide

MLX90364LVS-ADD-203-SP | Datasheet
