Specification	2069572103

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	39.4 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Blue
Insulation Height	0.748 in
Insulation Material	Syndiotactic Polystyrene (SPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.071 in
Row Spacing - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	14 VDC
Voltage Rating (Type)	DC

206957 Series

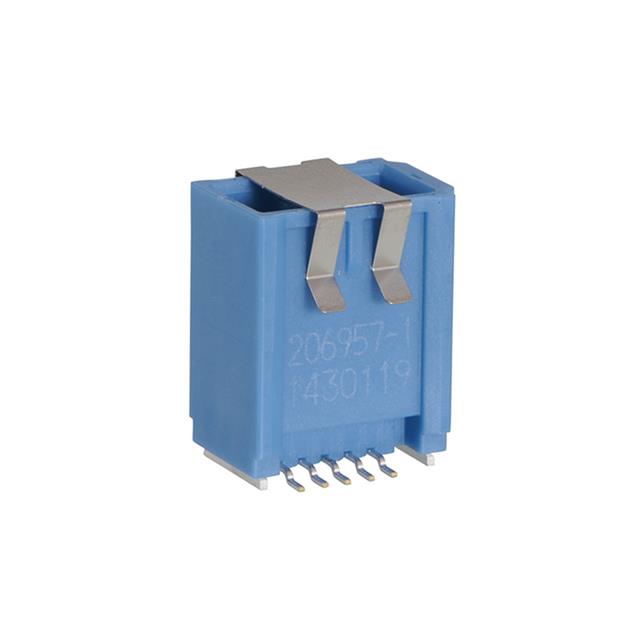

ConnTAK50 Header, Dual Row, Vertical, Surface Mount, 10 Circuits / 8 Circuits Usable, Key A, Black

Part	Number of Positions	Termination	Voltage Rating	Voltage Rating (Type)	Contact Type	Number of Rows	Style	Insulation Height	Shrouding	Pitch - Mating	Contact Finish - Post	Mounting Type	Contact Material	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Contact Shape	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Connector Type	Insulation Material	Contact Finish Thickness - Post	Features	Contact Length - Mating	Current Rating
Molex 2069572102	10	Solder	14 VDC	DC	Male Pin	2	Board Cable/Wire	0.748 in	Shrouded - 4 Wall	0.071 in	Tin	Surface Mount	Brass	UL94 V-0	All	Natural	Square	0.059 in	39.4 µin	Tin	3 A	-40 °C	105 °C	Push-Pull	Header	Syndiotactic Polystyrene (SPS)	39.4 µin
Molex 2069572103	10	Solder	14 VDC	DC	Male Pin	2	Board Cable/Wire	0.748 in	Shrouded - 4 Wall	0.071 in	Tin	Surface Mount	Brass	UL94 V-0	All	Blue	Square	0.059 in	39.4 µin	Tin	3 A	-40 °C	105 °C	Push-Pull	Header	Syndiotactic Polystyrene (SPS)	39.4 µin
Molex 2069574081
Molex 2069572104	10	Solder	14 VDC	DC	Male Pin	2	Board Cable/Wire	0.748 in	Shrouded - 4 Wall	0.071 in	Tin	Surface Mount	Brass	UL94 V-0	All	Violet	Square	0.059 in	39.4 µin	Tin	3 A	-40 °C	105 °C	Push-Pull	Header	Syndiotactic Polystyrene (SPS)	39.4 µin
Molex 2069574083
Molex 2069574084	8	Solder	14 VDC	DC	Male Pin	2	Board Cable/Wire	0.748 in	Shrouded - 4 Wall	0.071 in	Tin	Surface Mount	Brass	UL94 V-0	All	Violet	Square	0.059 in	118.1 µin	Tin	3 A	-40 °C	105 °C	Push-Pull	Header	Syndiotactic Polystyrene (SPS)	12 µin	Pick and Place
Molex 2069572101	10	Solder	100 VAC	AC DC	Male Pin	2	Board Cable/Wire	0.748 in	Shrouded - 4 Wall	0.071 in	Tin	Surface Mount	Brass		All	Black	Square	0.059 in	39.4 µin	Tin	0 A	-40 °C	105 °C	Push-Pull	Header	Syndiotactic Polystyrene (SPS)	39.4 µin		0.256 in	Varies by Wire Gauge
Molex 2069574082	8	Solder	14 VDC	DC	Male Pin	2	Board Cable/Wire	0.748 in	Shrouded - 4 Wall	0.071 in	Tin	Surface Mount	Brass	UL94 V-0	All	Natural	Square	0.059 in	118.1 µin	Tin	3 A	-40 °C	105 °C	Push-Pull	Header	Syndiotactic Polystyrene (SPS)	12 µin	Pick and Place
