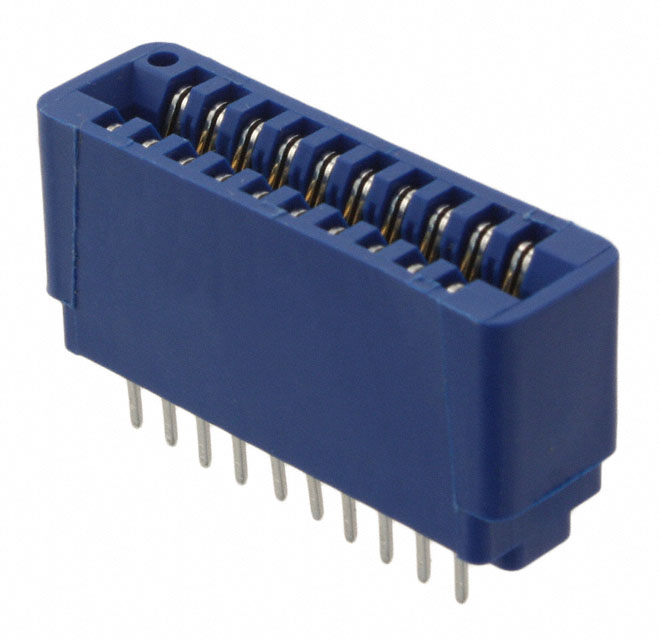

EBC10DCWN

Active

Sullins Connector Solutions

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING

Deep-Dive with AI

Search across all available documentation for this part.

EBC10DCWN

Active

Sullins Connector Solutions

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBC10DCWN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder

EBC10 Series

...

Part	Read Out	Gender	Number of Positions	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Flange Feature	Number of Rows	Termination	Card Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Type	Contact Finish	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Color	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions EBC10DTKT	Dual	Female	20	0.062 in	1.57 mm	10	4-40 Flush Mount Threaded Insert Top Opening	2	Solder	Non Specified - Dual Edge	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Loop Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions EBC10DRYI	Dual	Female	20	0.062 in	1.57 mm	10	4-40 Threaded Insert Top Mount Opening	2	Solder	Non Specified - Dual Edge	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Full Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Blue
Sullins Connector Solutions EBC10DTKD	Dual	Female	20	0.062 in	1.57 mm	10	Flush Mount Top Opening Unthreaded	2	Solder	Non Specified - Dual Edge	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Loop Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)		0.125 "	3.18 mm
Sullins Connector Solutions EBC10DCWN	Dual	Female	20	0.062 in	1.57 mm	10		2	Solder	Non Specified - Dual Edge	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Hairpin Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Blue
Sullins Connector Solutions EBC10DCWS	Dual	Female	20	0.062 in	1.57 mm	10	Side Mount Opening Unthreaded	2	Solder	Non Specified - Dual Edge	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Hairpin Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)				0.125 in	3.18 mm
Sullins Connector Solutions EBC10DTMN-S189	Dual	Female	20	0.062 in	1.57 mm	10		2	Solder	Non Specified - Dual Edge	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Loop Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions EBC10DPUI	Dual	Female	20	0.062 in	1.57 mm	10	4-40 Threaded Insert Top Mount Opening	2	Solder	Non Specified - Dual Edge	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Hairpin Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions EBC10DCWT	Dual	Female	20	0.062 in	1.57 mm	10	4-40 Flush Mount Threaded Insert Top Opening	2	Solder	Non Specified - Dual Edge	Through Hole	10 Áin	0.25 Ám	2.54 mm	0.1 in	Hairpin Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions EBC10DRAH	Dual	Female	20	0.062 in	1.57 mm	10	Top Mount Opening Unthreaded	2	Solder	Non Specified - Dual Edge	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Full Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)	Blue			0.125 in	3.18 mm
Sullins Connector Solutions EBC10DPGS	Dual	Female	20	0.062 in	1.57 mm	10	Side Mount Opening Unthreaded	2	Solder	Non Specified - Dual Edge	Through Hole Right Angle	10 Áin	0.25 Ám	2.54 mm	0.1 in	Hairpin Bellows	Gold	Phosphor Bronze	125 °C	-65 ░C	Polybutylene Terephthalate (PBT)				0.125 in	3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.96
		10	$ 3.60
		30	$ 3.41
		40	$ 3.33
		50	$ 2.79
		80	$ 3.17
		100	$ 2.65
		230	$ 2.77
		250	$ 2.49
		440	$ 2.70
		500	$ 2.37
		950	$ 2.30
		1000	$ 2.26
		2400	$ 2.14
		2500	$ 2.12

Description

General part information

EBC10 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue

Documents

Technical documentation and resources

No documents available
