0003062054

Obsolete

Molex

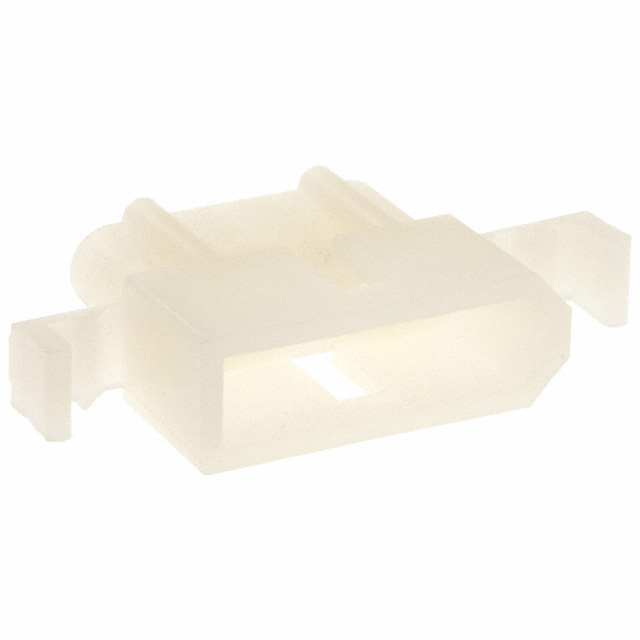

CONN PLUG HSG 5POS 3.68MM

Search across all available documentation for this part.

Obsolete

Molex

CONN PLUG HSG 5POS 3.68MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Mounting Type	Number of Positions	Color	Note	Connector Type	Contact Type	Contact Termination	Number of Rows	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0003062362	4.2 mm	0.165 in	4.2 mm	0.165 in	Panel Mount Snap-In	36	Natural	Contacts Not Included	Plug	Male or Female	Crimp
Molex 0003062121	3.68 mm	0.145 in	3.68 mm	0.145 in	Panel Mount Snap-In	12	Natural	Contacts Not Included	Plug	Male or Female	Crimp	3	Detent Lock	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C
Molex 0003062054	3.68 mm	0.145 in			Panel Mount Snap-In		Natural	Contacts Not Included	Plug	Male or Female	Crimp	1	Detent Lock
Molex 0003062241	3.68 mm	0.145 in	3.68 mm	0.145 in	Panel Mount Snap-In	24	Natural	Contacts Not Included	Plug	Male or Female	Crimp		Detent Lock
Molex 0003066155	3.68 mm	0.145 in	3.68 mm	0.145 in	Panel Mount Snap-In	15	Natural	Contacts Not Included	Receptacle	Male or Female	Crimp	3	Locking Ramp
Molex 0003061022	3.68 mm	0.145 in			Panel Mount Snap-In	2	Natural	Contacts Not Included	Receptacle	Male or Female	Crimp	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C
Molex 0003067044	3.68 mm	0.145 in	3.68 mm	0.145 in	Panel Mount Snap-In	4	Black	Contacts Not Included	Plug	Male or Female	Crimp	2	Latch Holder	Polyamide (PA66) Nylon 6/6	-40 °C	105 ░C
Molex 0003062151	3.68 mm	0.145 in	3.68 mm	0.145 in	Panel Mount Snap-In	15	Natural	Contacts Not Included	Plug	Male or Female	Crimp	3	Detent Lock
Molex 0003061056	3.68 mm	0.145 in			Free Hanging (In-Line)		Natural	Contacts Not Included	Receptacle	Male or Female	Crimp	1	Locking Ramp
Molex 0003061024

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Rectangular Connectors - Housings Plug Natural 0.145" (3.68mm)

Technical documentation and resources
