IKFW40N60DH3EXKSA1

Active

Infineon Technologies

600 V TRENCHSTOP™ IGBT WITH ANTI-PARALLEL DIODE IN ADVANCED ISOLATION PG-HSIP247-3 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 18 KHZ TO 60 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE AIR CONDITIONING PFC, DRIVES OR GPD.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

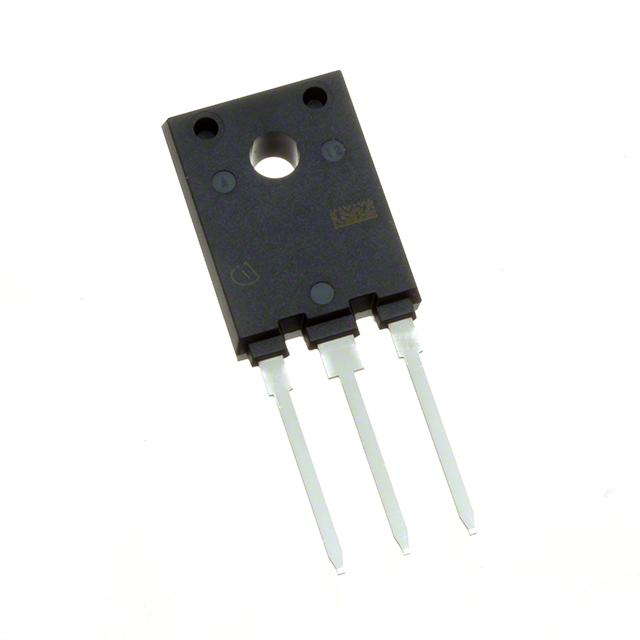

IKFW40N60DH3EXKSA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IKFW40N60DH3EXKSA1

Current - Collector (Ic) (Max)	34 A
Current - Collector Pulsed (Icm)	90 A
Gate Charge	107 nC
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-247-3
Power - Max [Max]	111 W
Reverse Recovery Time (trr)	72 ns
Supplier Device Package	PG-TO247-3-AI
Switching Energy	360 µJ, 870 µJ
Td (on/off) @ 25°C	144 ns, 18 ns
Test Condition	15 V, 400 V, 30 A, 10 Ohm
Vce(on) (Max) @ Vge, Ic	2.7 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

IKFW40 Series

Part	Mounting Type	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Package / Case	Switching Energy	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Pulsed (Icm)	Test Condition	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	IGBT Type	Power - Max [Max]	Current - Collector (Ic) (Max)	Reverse Recovery Time (trr)	Gate Charge
Infineon Technologies IKFW40N60DH3EXKSA1	Through Hole	2.7 V	18 ns 144 ns	TO-247-3	360 µJ 870 µJ	-40 C	175 °C	90 A	10 Ohm 15 V 30 A 400 V	600 V	PG-TO247-3-AI	Trench Field Stop	111 W	34 A	72 ns	107 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.62
		10	$ 3.78
		100	$ 2.74
		500	$ 2.63
Newark	Each	1	$ 5.92
		10	$ 5.57
		25	$ 3.47
		50	$ 3.17
		100	$ 2.87
		480	$ 2.67
		720	$ 2.60

Description

General part information

IKFW40 Series

Hard-switching 600 V, 30 A high speed TRENCHSTOP™ IGBT3 co-packed with Rapid 1 fast and soft anti-parallel diode in a TO-247advanced isolationpackage for a best cost efficient solution.
