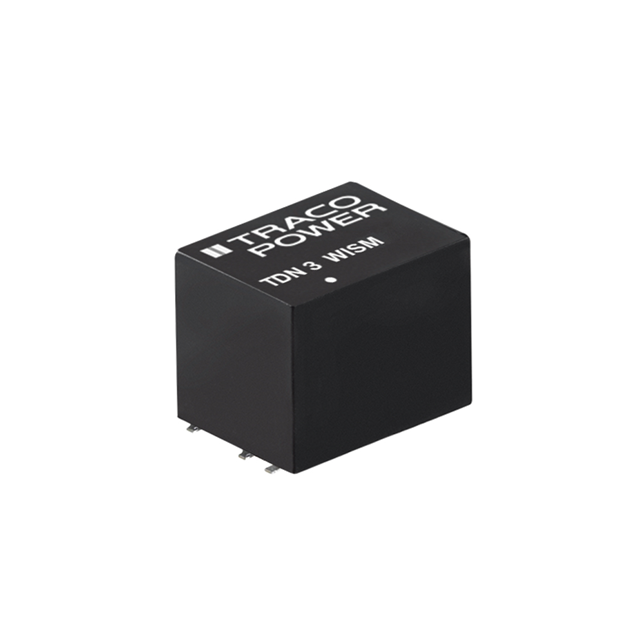

TDN 3-2410WISM

Active

Traco Power

DC DC CONVERTER 3.3V 2.3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.70
		10	$ 23.55
		25	$ 22.77
		50	$ 22.20
		100	$ 21.64
		250	$ 20.93
		500	$ 18.43

Description

General part information

TDN 3 Series

Isolated Module DC DC Converter 1 Output 3.3V 700mA 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDN 3-2410WISM	TDN 3 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 - 125 mA
Current - Output (Max)	-	100 - 300 mA
Current - Output (Max)	-	125 mA
Current - Output (Max) [Max]	700 mA	125 - 700 mA
Efficiency	77 %	77 - 84 %
Features	Remote On/Off, SCP	Remote On/Off, SCP
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SMD Module, 6 Leads	7-DIP Module, 6 Leads, 7-SMD Module, 6 Leads
Power (Watts)	2.3 W	2.3 - 3 W
Size / Dimension [x]	13.2 mm	13.2 mm
Size / Dimension [x]	0.52 in	0.52 in
Size / Dimension [y]	9.1 mm	9.1 mm
Size / Dimension [y]	0.36 "	0.36 "
Size / Dimension [z]	10.2 mm	10.2 mm
Size / Dimension [z]	0.4 "	0.4 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	18 - 75 V
Voltage - Input (Min) [Min]	9 V	4.5 - 18 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	3.3 V	3.3 - 24 V
Voltage - Output 2	-	-15 - -5 V

TDN 3 Series

DC DC CONVERTER 12V 3W

Part	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Outputs	Voltage - Isolation	Features	Type	Efficiency	Power (Watts)	Package / Case	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Traco Power TDN 3-4812WI	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	250 mA	75 V	18 V	-40 °C	70 °C	Through Hole	1	1.6 kV	Remote On/Off, SCP	Isolated Module	83 %	3 W	7-DIP Module, 6 Leads	12 V
Traco Power TDN 3-1213WISM	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	200 mA	18 V	4.5 V	-40 °C	70 °C	Surface Mount	1	1.6 kV	Remote On/Off, SCP	Isolated Module	84 %	3 W	7-SMD Module, 6 Leads	15 V
Traco Power TDN 3-4823WI	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		75 V	18 V	-40 °C	70 °C	Through Hole	2	1.6 kV	Remote On/Off, SCP	Isolated Module		3 W	7-DIP Module, 6 Leads	15 V	100 mA	100 mA	-15 V
Traco Power TDN 3-4815WI	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	125 mA	75 V	18 V	-40 °C	70 °C	Through Hole	1	1.6 kV	Remote On/Off, SCP	Isolated Module		3 W	7-DIP Module, 6 Leads	24 V
Traco Power TDN 3-2410WISM	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	700 mA	36 V	9 V	-40 °C	70 °C	Surface Mount	1	1.6 kV	Remote On/Off, SCP	Isolated Module	77 %	2.3 W	7-SMD Module, 6 Leads	3.3 V
Traco Power TDN 3-1212WISM	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	250 mA	18 V	4.5 V	-40 °C	70 °C	Surface Mount	1	1.6 kV	Remote On/Off, SCP	Isolated Module	83 %	3 W	7-SMD Module, 6 Leads	12 V
Traco Power TDN 3-4822WISM	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		75 V	18 V	-40 °C	70 °C	Surface Mount	2	1.6 kV	Remote On/Off, SCP	Isolated Module		3 W	7-SMD Module, 6 Leads	12 V	125 mA		-12 V	125 mA
Traco Power TDN 3-4811WI	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	600 mA	75 V	18 V	-40 °C	70 °C	Through Hole	1	1.6 kV	Remote On/Off, SCP	Isolated Module	80 %	3 W	7-DIP Module, 6 Leads	5 V
Traco Power TDN 3-2411WISM	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	600 mA	36 V	9 V	-40 °C	70 °C	Surface Mount	1	1.6 kV	Remote On/Off, SCP	Isolated Module	80 %	3 W	7-SMD Module, 6 Leads	5 V
Traco Power TDN 3-4823WISM	ITE (Commercial)	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "		75 V	18 V	-40 °C	70 °C	Surface Mount	2	1.6 kV	Remote On/Off, SCP	Isolated Module		3 W	7-SMD Module, 6 Leads	15 V	100 mA	100 mA	-15 V
