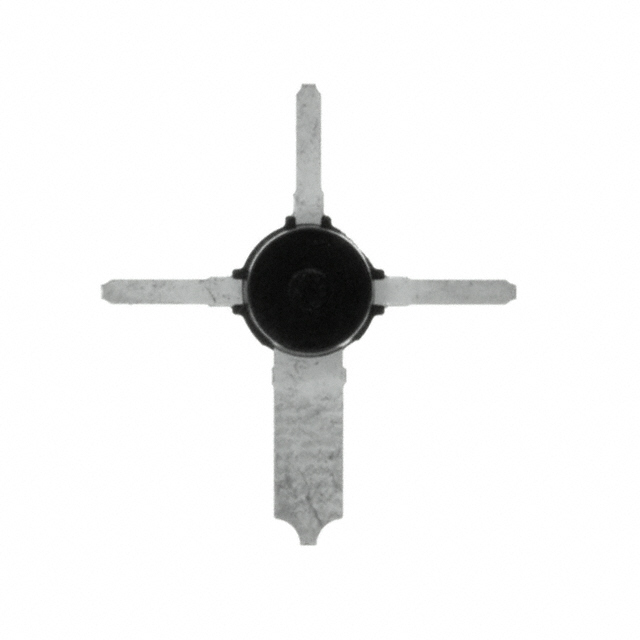

MRF555

Obsolete

Microsemi Corporation

RF TRANS NPN 16V POWER MACRO

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

RF TRANS NPN 16V POWER MACRO

Technical Specifications

Parameters and characteristics for this part

Specification	MRF555

Current - Collector (Ic) (Max) [Max]	500 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	30
Gain [Max]	13 dB
Gain [Min]	11 dB
Mounting Type	Surface Mount
Package / Case	Power Macro
Power - Max [Max]	3 W
Supplier Device Package	Power Macro
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	16 V

Part	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max)	Gain [Max]	Gain [Min]	Package / Case	Supplier Device Package	Transistor Type	Current - Collector (Ic) (Max) [Max]	Mounting Type
Microsemi Corporation MRF555T	3 W	50	16 V	12.5 dB	11 dB	Power Macro	Power Macro	NPN	500 mA	Surface Mount
Microsemi Corporation MRF555	3 W	30	16 V	13 dB	11 dB	Power Macro	Power Macro	NPN	500 mA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 16V 500mA 3W Surface Mount Power Macro

Technical documentation and resources

No documents available
