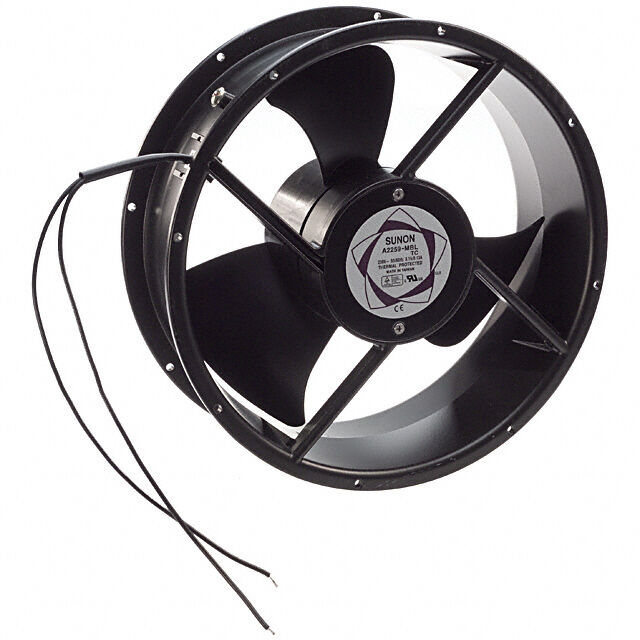

A2259-HBL.TC.GN

Active

Sunon Fans

FAN AXIAL 254X89MM 220/240VAC

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 254X89MM 220/240VAC

Technical Specifications

Parameters and characteristics for this part

FAN AXIAL 254X89MM 220/240VAC

Part	Termination	Bearing Type	Approval Agency	Material - Frame	Voltage - Rated	Fan Type	Air Flow	Air Flow	Noise	RPM	Power (Watts)	Weight	Weight	Current Rating (Amps)	Width [y]	Size / Dimension [diameter]	Size / Dimension	Static Pressure	Static Pressure
Sunon Fans A2259-HBL.TC.GN	2 Wire Leads	Ball	CE, cUR, TUV, UL	Aluminum	240 VAC	Tubeaxial	585 CFM	16.38 m³/min	60 dB(A)	1900 RPM	60 W	5.1 lbs	2.3 kg	650 mA	89 mm	10 in	Round	0.31 in H2O	77.2 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 132.91

General part information

Fan Tubeaxial 240VAC Round - 254mm Dia Ball 585.0 CFM (16.38m³/min) 2 Wire Leads
