3282-7PG-515
ActiveConxall/Switchcraft

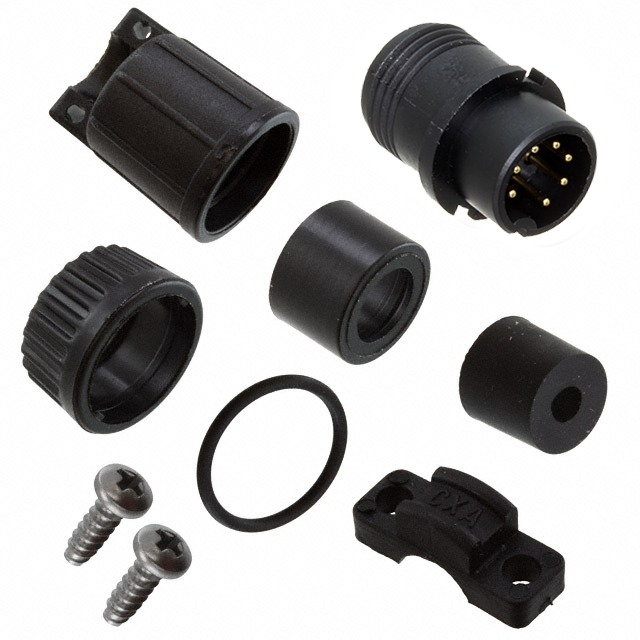

CONN PLUG MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
3282-7PG-515
ActiveConxall/Switchcraft
CONN PLUG MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3282-7PG-515 | 3282-7P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening | - | 5.33 - 7.62 mm |
| Cable Opening | - | 0.23 - 0.32 in |
| Cable Opening | - | 0.21 - 0.3 in |
| Cable Opening | - | 8.13 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Backshell, Cable Clamp |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
3282-7P Series
CONN PLUG MALE 7P GOLD SLDR CUP
| Part | Backshell Material, Plating | Orientation | Contact Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Contact Finish - Mating | Fastening Type | Number of Positions | Mounting Type | Primary Material | Voltage Rating | Ingress Protection | Current Rating (Amps) | Connector Type | Color | Shielding | Features | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 3282-7PG-328 | Nylon, Polyamide (PA) | Keyed | Brass | 7.37 mm | 7.11 mm | 0.29 in | 0.28 in | Gold | Bayonet Lock | 7 | Free Hanging (In-Line) | Plastic | 600 V | Weathertight | 5.6 A | Male Pins, Plug | Black | Unshielded | Backshell | -40 °C | 115 °C | |||||||
Conxall/Switchcraft 3282-7PG-530 | Nylon, Polyamide (PA) | Keyed | Brass | 7.62 mm | 0.32 in | 0.3 in | Gold | Bayonet Lock | 7 | Free Hanging (In-Line) | Plastic | 600 V | Weathertight | 5.6 A | Male Pins, Plug | Black | Unshielded | Backshell, Cable Clamp | -40 °C | 115 °C | 8.13 mm | |||||||
Conxall/Switchcraft 3282-7PG-318 | Nylon, Polyamide (PA) | Keyed | Brass | Gold | Bayonet Lock | 7 | Free Hanging (In-Line) | Plastic | 600 V | Weathertight | 5.6 A | Male Pins, Plug | Black | Unshielded | Backshell | -40 °C | 115 °C | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 3282-7PG-321 | Nylon, Polyamide (PA) | Keyed | Brass | 5.84 mm | 5.33 mm | 0.23 in | 0.21 in | Gold | Bayonet Lock | 7 | Free Hanging (In-Line) | Plastic | 600 V | Weathertight | 5.6 A | Male Pins, Plug | Black | Unshielded | Backshell | -40 °C | 115 °C | |||||||
Conxall/Switchcraft 3282-7PG-515 | Nylon, Polyamide (PA) | Keyed | Brass | Gold | Bayonet Lock | 7 | Free Hanging (In-Line) | Plastic | 600 V | Weathertight | 5.6 A | Male Pins, Plug | Black | Unshielded | Backshell, Cable Clamp | -40 °C | 115 °C | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 3282-7PG-528 | Nylon, Polyamide (PA) | Keyed | Brass | 7.37 mm | 7.11 mm | 0.29 in | 0.28 in | Gold | Bayonet Lock | 7 | Free Hanging (In-Line) | Plastic | 600 V | Weathertight | 5.6 A | Male Pins, Plug | Black | Unshielded | Backshell, Cable Clamp | -40 °C | 115 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.00 | |
| 10 | $ 7.97 | |||
| 25 | $ 7.67 | |||
| 50 | $ 7.36 | |||
| 100 | $ 7.20 | |||
Description
General part information
3282-7P Series
7 Position Circular Connector Plug, Male Pins Solder Cup
