3282-7PG-328

Active

Conxall/Switchcraft

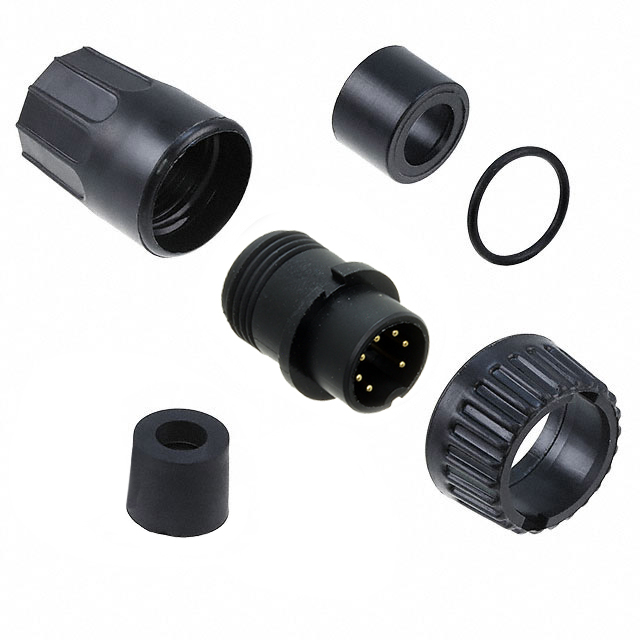

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3282-7PG-328

Active

Conxall/Switchcraft

CONN PLUG MALE 7P GOLD SLDR CUP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.98

Description

General part information

3282-7P Series

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-7PG-328	3282-7P Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	8.13 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	7.37 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.29 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	7.11 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.28 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	7
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-7P Series

CONN PLUG MALE 7P GOLD SLDR CUP

Part	Backshell Material, Plating	Orientation	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Finish - Mating	Fastening Type	Number of Positions	Mounting Type	Primary Material	Voltage Rating	Ingress Protection	Current Rating (Amps)	Connector Type	Color	Shielding	Features	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-7PG-328	Nylon, Polyamide (PA)	Keyed	Brass	7.37 mm	7.11 mm	0.29 in	0.28 in	Gold	Bayonet Lock	7	Free Hanging (In-Line)	Plastic	600 V	Weathertight	5.6 A	Male Pins, Plug	Black	Unshielded	Backshell	-40 °C	115 °C
Conxall/Switchcraft 3282-7PG-530	Nylon, Polyamide (PA)	Keyed	Brass		7.62 mm	0.32 in	0.3 in	Gold	Bayonet Lock	7	Free Hanging (In-Line)	Plastic	600 V	Weathertight	5.6 A	Male Pins, Plug	Black	Unshielded	Backshell, Cable Clamp	-40 °C	115 °C	8.13 mm
Conxall/Switchcraft 3282-7PG-318	Nylon, Polyamide (PA)	Keyed	Brass					Gold	Bayonet Lock	7	Free Hanging (In-Line)	Plastic	600 V	Weathertight	5.6 A	Male Pins, Plug	Black	Unshielded	Backshell	-40 °C	115 °C		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-7PG-321	Nylon, Polyamide (PA)	Keyed	Brass	5.84 mm	5.33 mm	0.23 in	0.21 in	Gold	Bayonet Lock	7	Free Hanging (In-Line)	Plastic	600 V	Weathertight	5.6 A	Male Pins, Plug	Black	Unshielded	Backshell	-40 °C	115 °C
Conxall/Switchcraft 3282-7PG-515	Nylon, Polyamide (PA)	Keyed	Brass					Gold	Bayonet Lock	7	Free Hanging (In-Line)	Plastic	600 V	Weathertight	5.6 A	Male Pins, Plug	Black	Unshielded	Backshell, Cable Clamp	-40 °C	115 °C						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-7PG-528	Nylon, Polyamide (PA)	Keyed	Brass	7.37 mm	7.11 mm	0.29 in	0.28 in	Gold	Bayonet Lock	7	Free Hanging (In-Line)	Plastic	600 V	Weathertight	5.6 A	Male Pins, Plug	Black	Unshielded	Backshell, Cable Clamp	-40 °C	115 °C
