LDD-HTC514RI

Active

Lumex Opto/Components Inc.

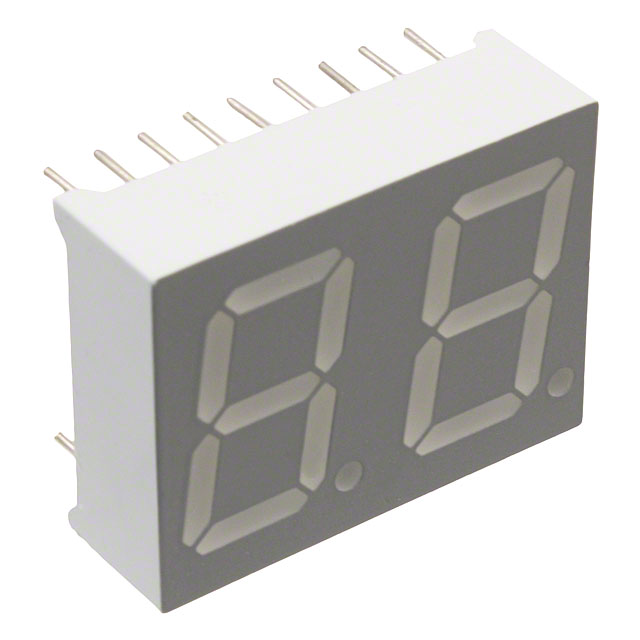

DISPLAY 7SEG 0.56" DBL RED 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LDD-HTC514RI

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.56" DBL RED 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDD-HTC514RI

Color	Red
Common Pin	Common Cathode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	3.9 mcd
Number of Characters	2
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	18-DIP
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	0.315 ", 8 mm
Size / Dimension [y]	25 mm, 0.984 in
Size / Dimension [z]	19 mm, 0.748 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LDD-HTC514 Series

DISPLAY 7SEG 0.56" DBL RED 18DIP

Part	Package / Case	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Wavelength - Peak	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Common Pin	Color
Lumex Opto/Components Inc. LDD-HTC514RI	15.24 mm	0.6 in	18-DIP	0.748 ", 19 mm	0.984 in, 25 mm	0.315 ", 8 mm	105 mW	10 mA	2 V	7-Segment	635 nm	2	0.56 in	14.22 mm	3.9 mcd	Common Cathode	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.20
		20	$ 1.46
		100	$ 1.13
		500	$ 1.02
		1000	$ 0.87
		2000	$ 0.83
		5000	$ 0.81
		10000	$ 0.80

Description

General part information

LDD-HTC514 Series

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 10mA 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm)
