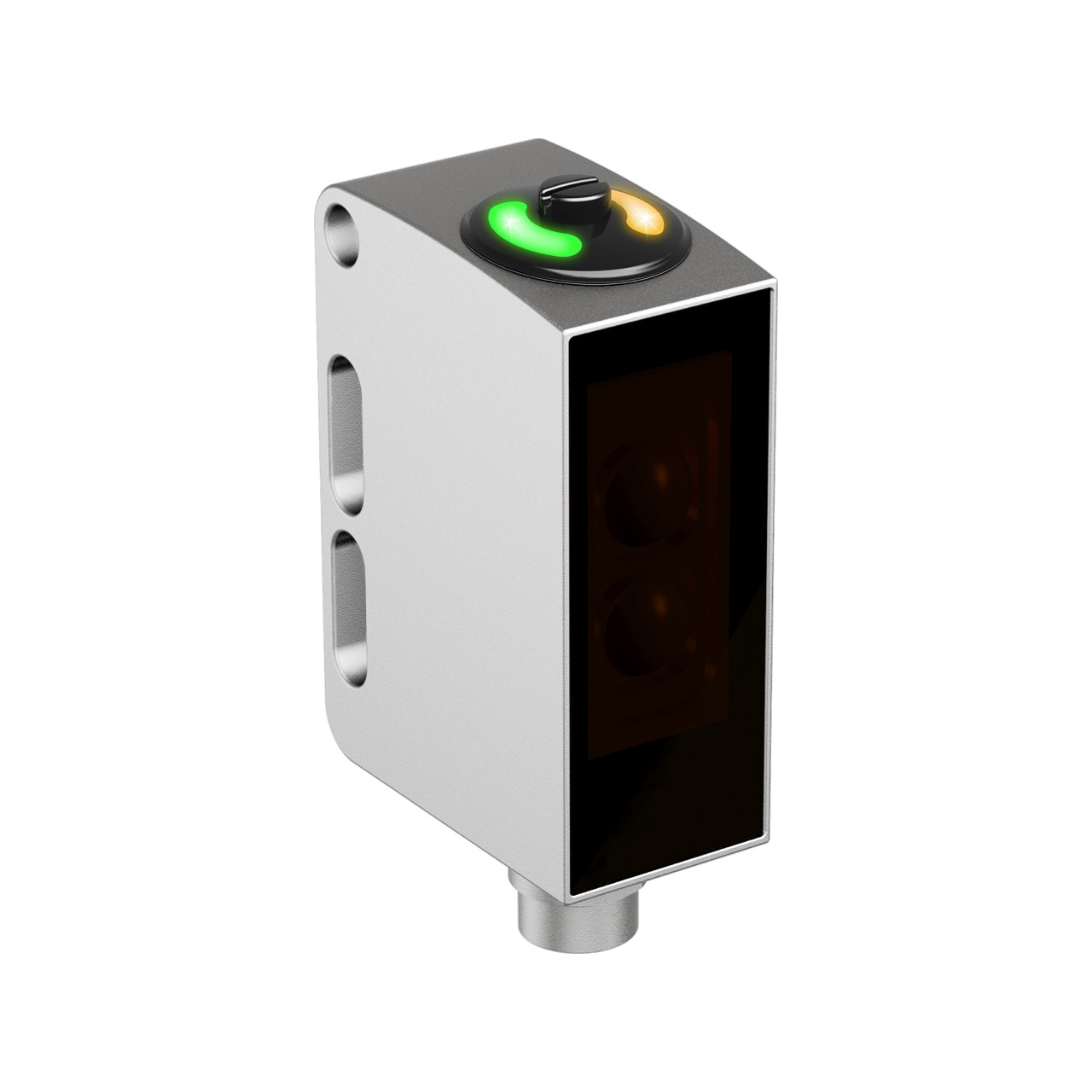

QM26VNLPQ5

Active

BANNER ENGINEERING

QM26 WASHDOWN SERIES: STANDARD POLARIZED RETRO

Search across all available documentation for this part.

Active

BANNER ENGINEERING

QM26 WASHDOWN SERIES: STANDARD POLARIZED RETRO

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Ingress Protection	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source
BANNER ENGINEERING QM26VNLPQ5	3000 mm	118.11 in	IP69K	Polarized Retroreflective	70 °C	-30 ░C	Connector	500 µs	30 VDC	10 VDC	Red LED
BANNER ENGINEERING QM26VNRQ5	8.5 m	334.646 "	IP69K	Through-Beam	70 °C	-30 ░C	Connector	500 µs	30 VDC	10 VDC	Red LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 267.00
Newark	Each	1	$ 272.00

General part information

Retroreflective, Polarized Optical Sensor 118.110" (3m) NPN - Dark-ON/Light-ON - Selectable
