SRP1770TA-560M

Active

Bourns Inc.

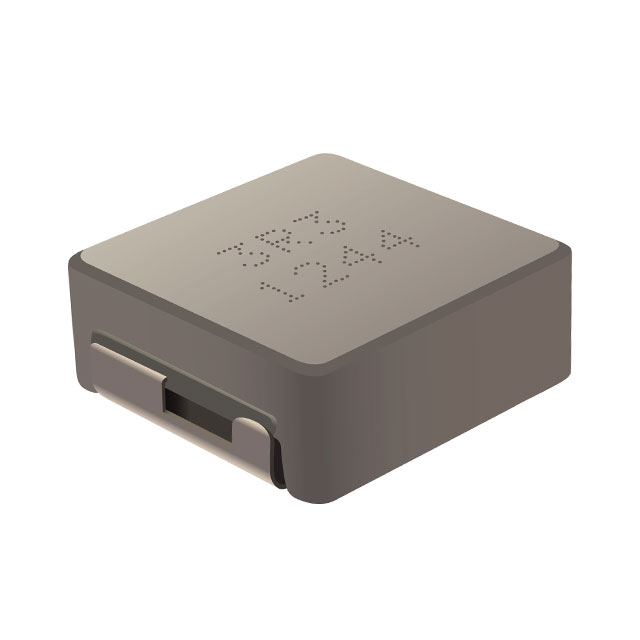

INDUCTOR POWER SHIELDED WIREWOUND 56UH 20% 100KHZ 20Q-FACTOR CARBONYL POWDER 7.8A 0.062OHM DCR AUTOMOTIVE AEC-Q200 T/R

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 56UH 20% 100KHZ 20Q-FACTOR CARBONYL POWDER 7.8A 0.062OHM DCR AUTOMOTIVE AEC-Q200 T/R

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Self Resonant	Package / Case	Shielding	Inductance	Ratings	Inductance Frequency - Test	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	DC Resistance (DCR)	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current - Saturation (Isat)	Q @ Freq	Current Rating (Amps)	DC Resistance (DCR) [Max]
Bourns Inc. SRP1770TA-560M	3 MHz	Nonstandard	Shielded	56 µH	AEC-Q200	100 kHz	Carbonyl Powder	7 mm	0.276 "	20 %	62 mOhm	Drum Core Wirewound	16.9 mm	16.9 mm	0.665 in	0.665 in	Surface Mount	9 A	20 100 kHz	7.8 A
Bourns Inc. SRP1770TA-680M	2 MHz	Nonstandard	Shielded	68 µH	AEC-Q200	100 kHz	Carbonyl Powder	7 mm	0.276 "	20 %		Drum Core Wirewound	16.9 mm	16.9 mm	0.665 in	0.665 in	Surface Mount	8 A	20 100 kHz	7 A	80 mOhm
Bourns Inc. SRP1770TA-3R3M	17 MHz	Nonstandard	Shielded	3.3 µH	AEC-Q200	100 kHz	Carbonyl Powder	7 mm	0.276 "	20 %		Drum Core Wirewound	16.9 mm	16.9 mm	0.665 in	0.665 in	Surface Mount	45 A	20 100 kHz	28 A	3.9 mOhm
Bourns Inc. SRP1770TA-150M	7 MHz	Nonstandard	Shielded	15 µH	AEC-Q200	100 kHz	Carbonyl Powder	7 mm	0.276 "	20 %	20.5 mOhm	Drum Core Wirewound	16.9 mm	16.9 mm	0.665 in	0.665 in	Surface Mount	23 A	20 100 kHz	12.5 Amps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56 µH Shielded Drum Core, Wirewound Inductor 7.8 A 62mOhm Max Nonstandard
