060330160104JXT

Active

Knowles Syfer

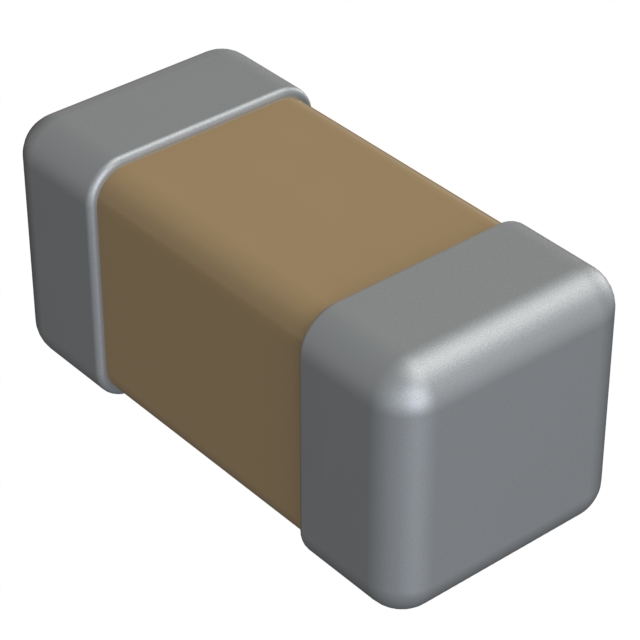

CAP CER 0.1UF 16V X7R 0603

Search across all available documentation for this part.

Active

Knowles Syfer

CAP CER 0.1UF 16V X7R 0603

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	060330160104JXT	06033 Series

Applications	Boardflex Sensitive	Boardflex Sensitive
Capacitance	100000 pF	0.001 - 100000 µF
Features	Non-Magnetic, Soft Termination	Non-Magnetic, Soft Termination
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	0.8 mm	0.8 mm
Size / Dimension [y]	0.031 in	0.031 in
Temperature Coefficient	X7R	X7R
Thickness (Max)	0.8 mm	0.8 mm
Thickness (Max) [Max]	0.031 "	0.031 "
Tolerance	5 %	5 - 10 %
Voltage - Rated	-	200 V
Voltage - Rated [custom]	16 V	16 V

CAP CER 1000PF 200V X7R 0603

Part	Mounting Type	Package / Case	Temperature Coefficient	Voltage - Rated	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max)	Tolerance	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Voltage - Rated [custom]
Knowles Syfer 060332000102JXT	MLCC, Surface Mount	0603 (1608 Metric)	X7R	200 V	Boardflex Sensitive	-55 °C	125 °C	0.031 "	0.8 mm	5 %	Non-Magnetic, Soft Termination	0.8 mm	0.063 in	1.6 mm	0.031 in	0.001 µF
Knowles Syfer 060330160104KXT	MLCC, Surface Mount	0603 (1608 Metric)	X7R		Boardflex Sensitive	-55 °C	125 °C	0.031 "	0.8 mm	10 %	Soft Termination	0.8 mm	0.063 in	1.6 mm	0.031 in	100000 pF	16 V
Knowles Syfer 060330160104JXT	MLCC, Surface Mount	0603 (1608 Metric)	X7R		Boardflex Sensitive	-55 °C	125 °C	0.031 "	0.8 mm	5 %	Non-Magnetic, Soft Termination	0.8 mm	0.063 in	1.6 mm	0.031 in	100000 pF	16 V
Knowles Syfer 060330630222KXT	MLCC, Surface Mount	0603 (1608 Metric)	X7R		Boardflex Sensitive	-55 °C	125 °C	0.031 "	0.8 mm	10 %	Non-Magnetic, Soft Termination	0.8 mm	0.063 in	1.6 mm	0.031 in	2200 pF
Knowles Syfer 060330630332KXT	MLCC, Surface Mount	0603 (1608 Metric)	X7R		Boardflex Sensitive	-55 °C	125 °C	0.031 "	0.8 mm	10 %	Non-Magnetic, Soft Termination	0.8 mm	0.063 in	1.6 mm	0.031 in	3300 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF ±5% 16V Ceramic Capacitor X7R 0603 (1608 Metric)

Technical documentation and resources

No documents available
