122542RP

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	122542RP

Body Finish	Nickel
Body Material	Brass
Cable Group	1.13mm Coaxial Cable
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

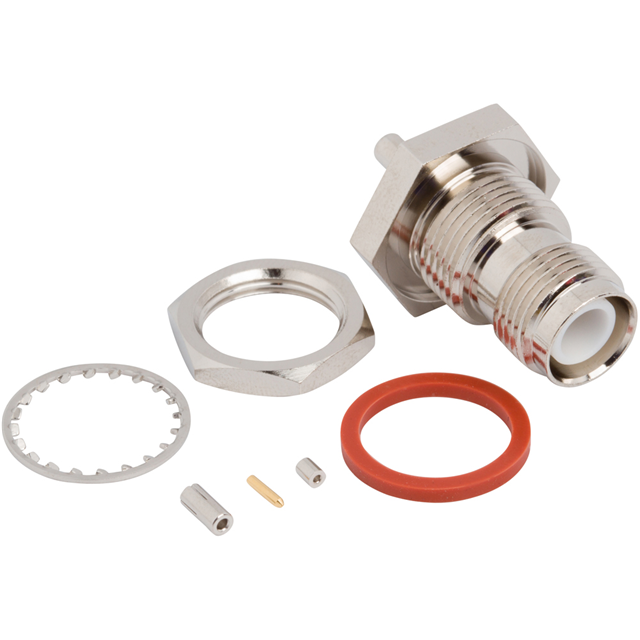

Includes	1 Sleeve, 1 Lockwasher, 2 Insulators, 1 Connector, 1 Contact, 1 Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Body Material	Body Finish	Contact Termination	Mating Cycles	Dielectric Material	Center Contact Plating	Ingress Protection	Connector Style	Includes	Mounting Feature	Shield Termination	Impedance	Center Contact Material	Voltage Rating	Cable Group
Amphenol RF 122542RP	1	11 GHz	Jack Male Pin	-65 ░C	165 °C	Silver	Brass	Nickel	Crimp	500	Polytetrafluoroethylene (PTFE)	Gold	IP67 - Dust Tight Waterproof	RP-TNC	1 Connector 1 Contact 1 Lockwasher 1 Nut 1 Sleeve 2 Insulators	Bulkhead - Front Side Nut	Crimp	50 Ohms	Brass Phosphor Bronze	500 V	1.13mm Coaxial Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.05

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
