5180-2SG-330

Active

Conxall/Switchcraft

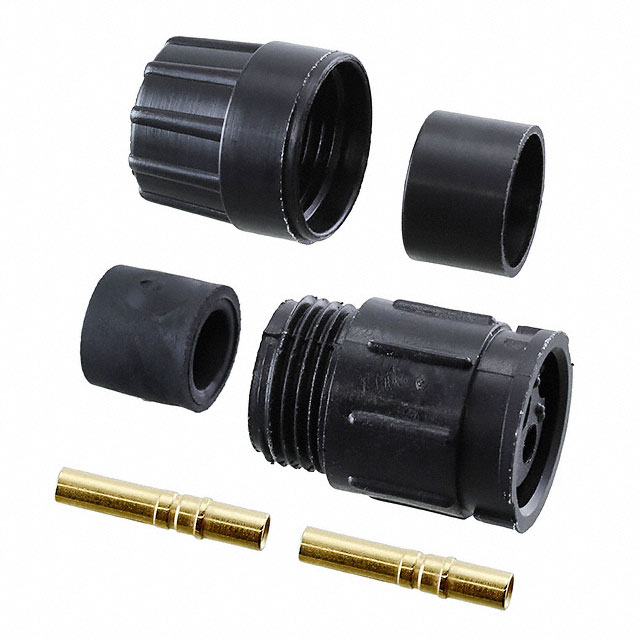

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5180-2SG-330

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.77
		10	$ 7.00
		25	$ 6.59
		50	$ 6.42
		100	$ 6.25
		300	$ 5.95

Description

General part information

5180-2SG Series

2 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5180-2SG-330	5180-2SG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	0.32 in	0.23 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5180-2SG Series

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Termination	Color	Number of Positions	Contact Finish - Mating	Connector Type	Voltage Rating	Primary Material	Fastening Type	Shielding	Features	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Contact Material	Ingress Protection	Mounting Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 5180-2SG-3DC	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)
Conxall/Switchcraft 5180-2SG-518	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell, Cable Clamp	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5180-2SG-324	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)					0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 5180-2SG-515	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell, Cable Clamp	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)									0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5180-2SG-524	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell, Cable Clamp	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)					0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 5180-2SG-528	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell, Cable Clamp	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)					0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 5180-2SG-530	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell, Cable Clamp	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)					0.3 in		7.62 mm	0.32 in			8.13 mm
Conxall/Switchcraft 5180-2SG-315	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)									0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5180-2SG-330	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)					0.3 in		7.62 mm	0.32 in			8.13 mm
Conxall/Switchcraft 5180-2SG-328	Crimp	Black	2	Gold	Receptacle, Female Sockets	600 V	Plastic	Bayonet Lock	Unshielded	Backshell	Keyed	-40 °C	115 °C	Nylon, Polyamide (PA)	Brass	Weathertight	Free Hanging (In-Line)					0.28 in	7.37 mm	7.11 mm	0.29 in
