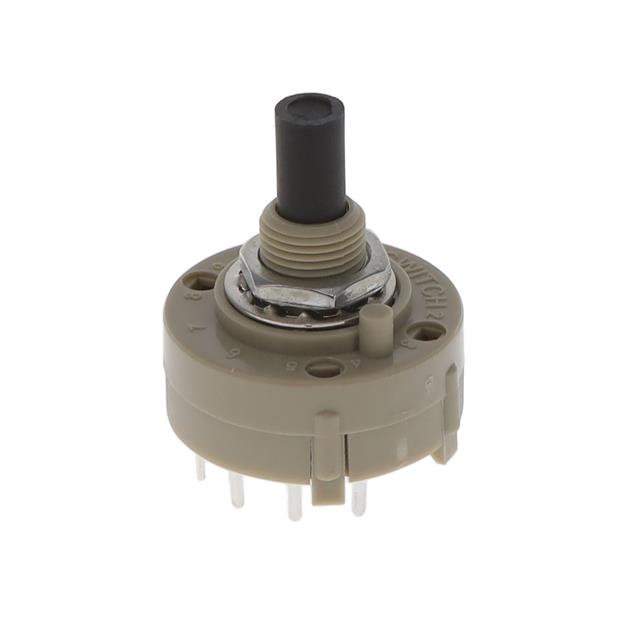

KC15B10.001NPS

Active

E-Switch

SWITCH ROTARY 5POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 5POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC15B10.001NPS

Actuator Length [x]	10 mm
Actuator Type	Round
Actuator Type [diameter]	6 mm
Angle of Throw	30 °
Circuit per Deck	SP5T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel	14.2 mm
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Contact Finish	Depth Behind Panel [z]	Number of Poles per Deck	Number of Decks [custom]	Voltage Rating - AC	Index Stops	Contact Material	Current Rating (Amps)	Angle of Throw	Actuator Length [x]	Termination Style	Circuit per Deck	Contact Timing	Actuator Type [diameter]	Actuator Type	Mounting Type	Depth Behind Panel
E-Switch KC15B10.001NLS	9.8 mm	Silver	20.7 mm	1	1	125 V	Fixed	Copper Alloy	350 mA	30 °	10 mm	Solder Lug	SP5T	Non-Shorting	6 mm	Round
E-Switch KC15B10.001NPS	9.8 mm	Silver		1	1	125 V	Fixed	Copper Alloy	350 mA	30 °	10 mm	PC Pin	SP5T	Non-Shorting	6 mm	Round	Panel Mount Through Hole	14.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 5 Position SP5T 350mA (AC) 125 VAC Panel Mount, Through Hole
