C14621R0485071

Active

Amphenol Tuchel Industrial

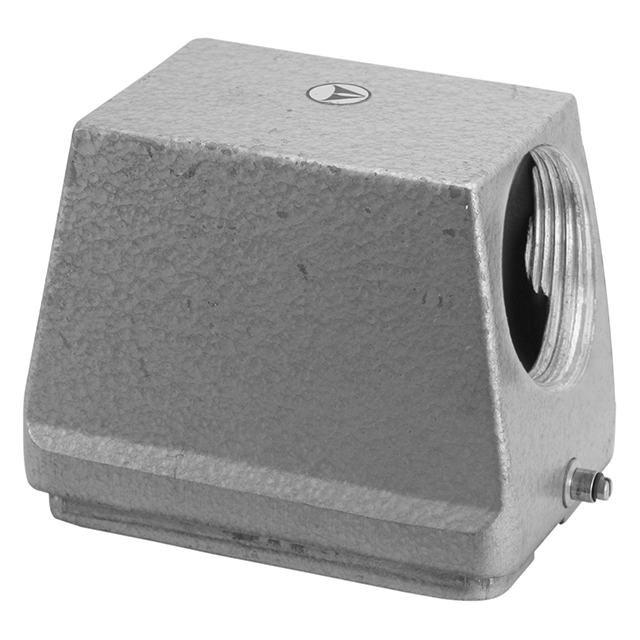

CONN HOOD SIDE ENTRY SZE48 M40

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE48 M40

Technical Specifications

Parameters and characteristics for this part

Specification	C14621R0485071

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E48
Size / Dimension [x]	132 mm
Size / Dimension [x]	5.197 in
Size / Dimension [y]	3.543 in
Size / Dimension [y]	90 mm
Size / Dimension [z]	105 mm
Size / Dimension [z]	4.134 "
Style	Side Entry

Part	Lock Location	Housing Material	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Style	Connector Type	Size	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size
Amphenol Tuchel Industrial C14621R0486081	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	3.543 in	132 mm	105 mm	90 mm	5.197 in	4.134 "	Top Entry	Hood	E48	100 °C	-40 °C	M50
Amphenol Tuchel Industrial C14621R0485071	Locking Clip (1) on Base Bottom	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	3.543 in	132 mm	105 mm	90 mm	5.197 in	4.134 "	Side Entry	Hood	E48	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 65.43

General part information

Hood Connector Side Entry M40 E48 IP65 - Dust Tight, Water Resistant
