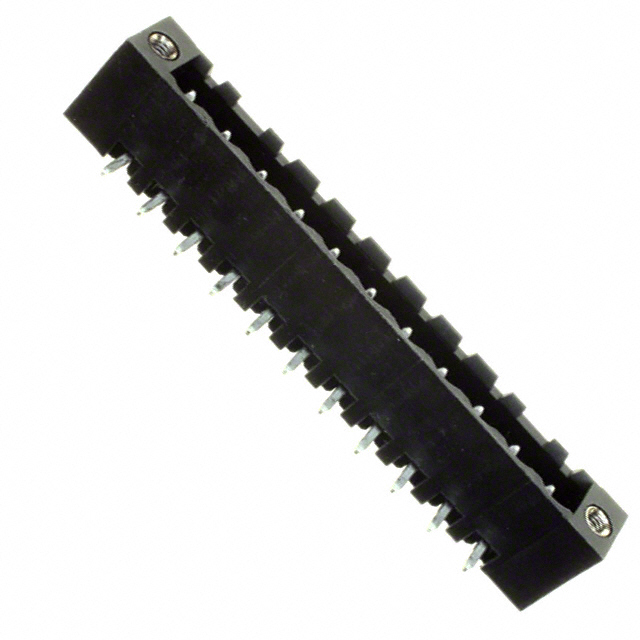

ELFH11210E

Active

AMPHENOL PCD

TERM BLOCK HDR 11POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELFH11210E

Active

AMPHENOL PCD

TERM BLOCK HDR 11POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELFH11210E

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.94 mm
Contact Tail Length	0.155 in
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	8.1 mm
Insulation Height	0.319 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	11
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	11
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

ELFH112 Series

Part	Contact Tail Length	Contact Tail Length	Termination Style	Color	Material Flammability Rating	Type	Contact Material	Insulation Height	Insulation Height [z]	Number of Positions	Number of Levels	Voltage - UL	Contact Mating Finish	Header Orientation	Pitch [x]	Pitch [x]	Housing Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Insulation Height	Features
AMPHENOL PCD ELFH1124G
AMPHENOL PCD ELFH11260	3.94 mm	0.155 in	Solder	Black	UL94 V-0	Header Male Pins Shrouded (2 Side)	Brass	12.07 mm	0.475 in	11	1	300 V	Tin	Vertical	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	11
AMPHENOL PCD ELFH11250			Solder	Black	UL94 V-0	Header Male Pins Shrouded (4 Side)	Brass	8.1 mm		11	1	300 V	Tin	Vertical	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	11	0.319 in
AMPHENOL PCD ELFH11210E	3.94 mm	0.155 in	Solder	Black	UL94 V-0	Header Male Pins Shrouded (4 Side)	Brass	8.1 mm		11	1	300 V	Tin	90° Right Angle	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	11	0.319 in	Mating Flange
AMPHENOL PCD ELFH11230			Solder	Black	UL94 V-0	Header Male Pins Shrouded (4 Side)	Brass	8.1 mm		11	1	300 V	Tin	90° Right Angle	0.2 in	5.08 mm	Polyamide (PA46) Nylon 4/6	Through Hole	-40 °C	105 ░C	11	0.319 in
AMPHENOL PCD ELFH1128G
AMPHENOL PCD ELFH11250E			Solder	Black	UL94 V-0	Header Male Pins Shrouded (4 Side)	Brass	8.1 mm		11	1	300 V	Tin	Vertical	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	11	0.319 in	Mating Flange
AMPHENOL PCD ELFH11230E
AMPHENOL PCD ELFH11210			Solder	Black	UL94 V-0	Header Male Pins Shrouded (4 Side)	Brass	8.1 mm		11	1	300 V	Tin	90° Right Angle	0.2 in	5.08 mm	Polybutylene Terephthalate (PBT)	Through Hole	-40 °C	105 ░C	11	0.319 in
AMPHENOL PCD ELFH11290	3.94 mm	0.155 in	Solder	Black	UL94 V-0	Header Male Pins Shrouded (2 Side)	Brass	12.07 mm	0.475 in	11	1	300 V	Tin	Vertical	0.2 in	5.08 mm	Polyamide (PA46) Nylon 4/6	Through Hole	-40 °C	105 ░C	11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.39

Description

General part information

ELFH112 Series

11 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
