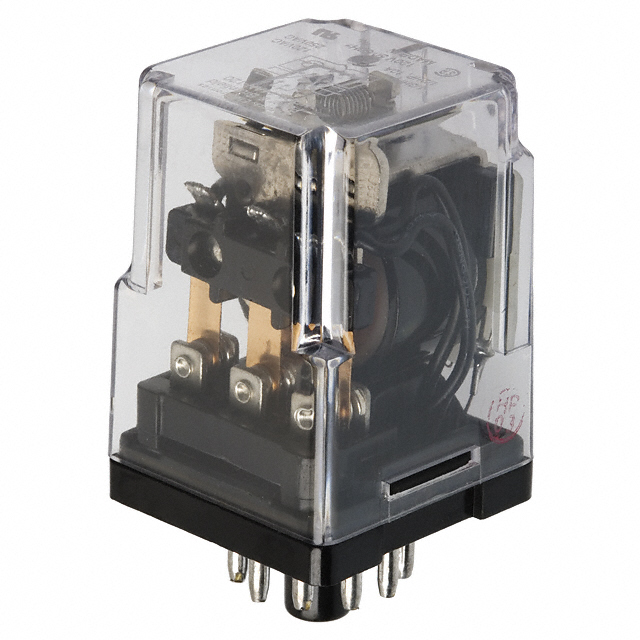

KRPA-14AG-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KRPA-14AG-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KRPA-14AG-120 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 17.5 mA |
| Coil Insulation | Class B |
| Coil Resistance | 2.25 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 102 VAC |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Switching Voltage | 240 VAC |
| Termination Style | Plug In, 11 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 34.30 | |
| 10 | $ 29.96 | |||
| 25 | $ 28.39 | |||
| 40 | $ 27.62 | |||
| 80 | $ 26.52 | |||
| 230 | $ 24.92 | |||
Description
General part information
KRPA-14 Series
General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable
