BT155W-1400TQ

Active

WeEn Semiconductors

PLANAR PASSIVATED SILICON CONTRO

Search across all available documentation for this part.

Active

WeEn Semiconductors

PLANAR PASSIVATED SILICON CONTRO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT155W-1400TQ	BT155 Series

Current - Gate Trigger (Igt) (Max) [Max]	50 mA	50 mA
Current - Hold (Ih) (Max) [Max]	200 mA	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	715 A	715 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	650 A	650 A
Current - Off State (Max) [Max]	10 µA	3 - 10 mA
Current - On State (It (AV)) (Max)	50 A	50 A
Current - On State (It (RMS)) (Max)	79 A	79 A
Mounting Type	Through Hole	Through Hole
Operating Temperature	150 °C	150 °C
Package / Case	TO-247-3	SC-65-3, TO-3P-3, TO-247-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	TO-247-3	TO-3P, TO-247-3
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 V
Voltage - Off State	1.4 kV	1.2 - 1.4 kV
Voltage - On State (Vtm) (Max) [Max]	1.6 V	1.5 - 1.6 V

SCR 1.2KV 79A TO3P

Part	Current - Hold (Ih) (Max) [Max]	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Voltage - On State (Vtm) (Max) [Max]	Package / Case	Current - On State (It (AV)) (Max)	Current - Off State (Max) [Max]	Current - On State (It (RMS)) (Max)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Operating Temperature	SCR Type	Supplier Device Package
WeEn Semiconductors BT155Z-1200TQ	200 mA	1.2 kV	715 A	650 A	50 mA	Through Hole	1.5 V	SC-65-3, TO-3P-3	50 A	3 mA	79 A	1 V	150 °C	Standard Recovery	TO-3P
WeEn Semiconductors BT155W-1200TQ	200 mA	1.2 kV	715 A	650 A	50 mA	Through Hole	1.5 V	TO-247-3	50 A	3 mA	79 A	1 V	150 °C	Standard Recovery	TO-247-3
WeEn Semiconductors BT155W-1200T-AQ	200 mA	1.2 kV	715 A	650 A	50 mA	Through Hole	1.5 V	TO-247-3	50 A	3 mA	79 A	1 V	150 °C	Standard Recovery	TO-247-3
WeEn Semiconductors BT155W-1400TQ	200 mA	1.4 kV	715 A	650 A	50 mA	Through Hole	1.6 V	TO-247-3	50 A	10 µA	79 A	1 V	150 °C	Standard Recovery	TO-247-3
WeEn Semiconductors BT155K-1200TQ	200 mA	1.2 kV	715 A	650 A	50 mA	Through Hole	1.5 V	SC-65-3, TO-3P-3	50 A	3 mA	79 A	1 V	150 °C	Standard Recovery	TO-3P

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

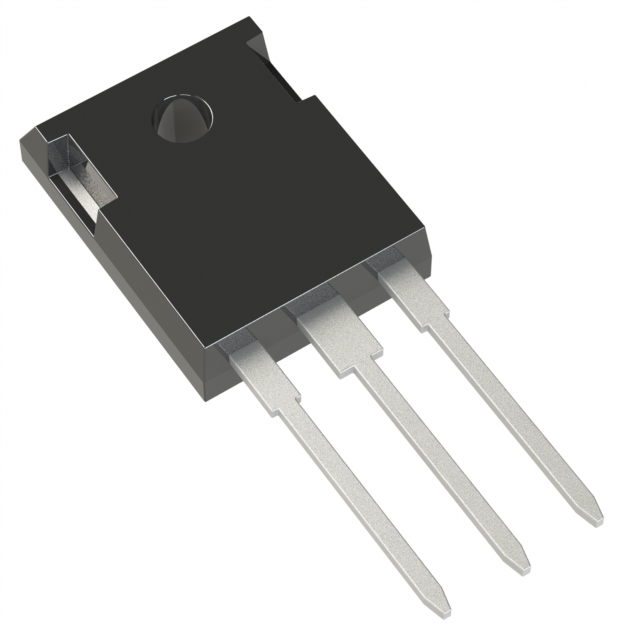

SCR 1.4 kV 79 A Standard Recovery Through Hole TO-247-3
