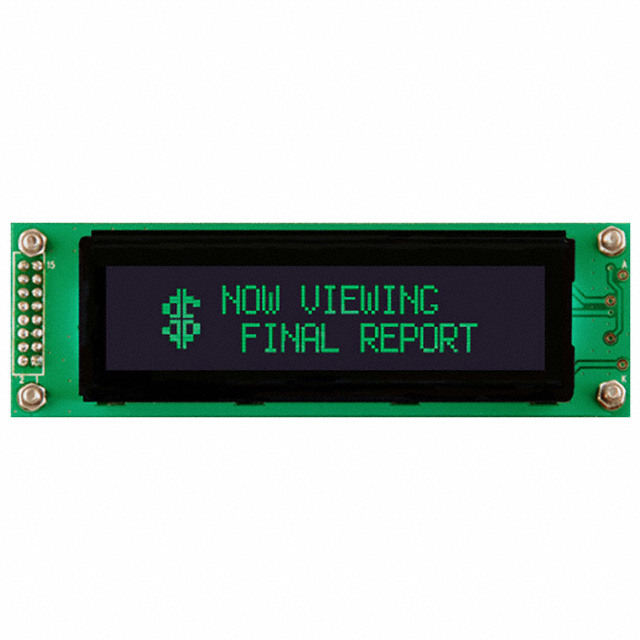

LK202-25-USB-FG

Active

Matrix Orbital

LCD MOD 40DIG 20X2 TRANSMISV GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LK202-25-USB-FG

Active

Matrix Orbital

LCD MOD 40DIG 20X2 TRANSMISV GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LK202-25-USB-FG

Background Color	Black
Backlight	LED - Green
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	3.2 mm
Character Size [z]	5.55 mm
Display Format [x]	20
Display Format [y]	2
Display Mode	Transmissive
Display Type	FFSTN - Double Film Super-Twisted Nematic
Dot Size [custom]	0.65 mm
Dot Size [custom]	0.6 mm
Interface	USB
Number of Characters	40
Outline L x W x H [x]	116 mm
Outline L x W x H [y]	37 mm
Outline L x W x H [z]	27.7 mm
Text Color	Green
Viewing Area [x]	83 mm
Viewing Area [y]	18.6 mm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

LK202 Series

Part	Display Type	Viewing Area [y]	Viewing Area [x]	Background Color	Number of Characters	Text Color	Character Size [z]	Character Size [y]	Backlight	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Character Format [y]	Character Format [x]	Display Format [x]	Display Format [y]	Dot Size [custom]	Dot Size [custom]	Interface	Display Mode	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Matrix Orbital LK202-25-USB-R	LCD - Color	18.6 mm	83 mm	Black	40	Red	5.55 mm	3.2 mm	LED - Red	37 mm	27.7 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	USB	Transmissive	4.75 V	5.25 V
Matrix Orbital LK202-25-USB-E	LCD - Color	18.6 mm	83 mm	Green	40	Gray	5.55 mm	3.2 mm		37 mm	27.7 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	USB	Transmissive	4.75 V	5.25 V	-20 C	70 °C
Matrix Orbital LK202-25-R	LCD - Color	11.5 mm	73.5 mm	Black	40	Red	5.55 mm	3.2 mm	LED - Red	37 mm	28.69 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	I2C RS-232 TTL	Transmissive	4.75 V	5.25 V
Matrix Orbital LK202-25-WB-V-E	LCD - Monochrome	11.5 mm	73.5 mm	Blue	40	White	5.55 mm	3.2 mm		37 mm	29 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	I2C RS-232 TTL		9 V	15 V	-20 C	70 °C
Matrix Orbital LK202-25-IY-V-E	LCD - Monochrome	11.5 mm	73.5 mm	Black	40	Yellow	5.55 mm	3.2 mm		37 mm	29 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	I2C RS-232 TTL		9 V	15 V	-20 C	70 °C
Matrix Orbital LK202-25-FA-V	FFSTN - Double Film Super-Twisted Nematic	11.5 mm	73.5 mm	Black	40	Amber	5.55 mm	3.2 mm		37 mm	29 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	I2C RS-232 TTL		9 V	15 V
Matrix Orbital LK202-25-GW	LCD - Color	11.5 mm	73.5 mm	White	40	Gray	5.55 mm	3.2 mm	LED - White	37 mm	28.69 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	I2C RS-232 TTL	Transmissive	4.75 V	5.25 V
Matrix Orbital LK202-25-USB-R-E	LCD - Color	18.6 mm	83 mm	Black	40	Red	5.55 mm	3.2 mm	LED - Red	37 mm	27.7 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	USB	Transmissive	4.75 V	5.25 V	-20 C	70 °C
Matrix Orbital LK202-25-USB-GW-E	LCD - Color	18.6 mm	83 mm	White	40	Gray	5.55 mm	3.2 mm	LED - White	37 mm	27.7 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	USB	Transmissive	4.75 V	5.25 V	-20 C	70 °C
Matrix Orbital LK202-25-USB-FG	FFSTN - Double Film Super-Twisted Nematic	18.6 mm	83 mm	Black	40	Green	5.55 mm	3.2 mm	LED - Green	37 mm	27.7 mm	116 mm	8 Dots	5 Dots	20	2	0.65 mm	0.6 mm	USB	Transmissive	4.75 V	5.25 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.95
		100	$ 61.06

Description

General part information

LK202 Series

Character Display Module Transmissive 5 x 8 Dots FFSTN - Double Film Super-Twisted Nematic LED - Green USB 116.00mm x 37.00mm x 27.70mm
