IMSA-13103B-08Y900

Active

IRISO USA Inc.

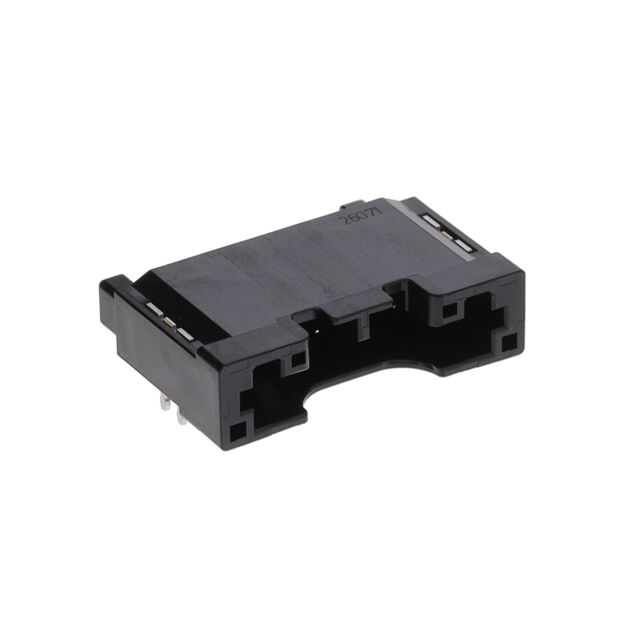

HEADER SMT RA 8POS KEY-A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-13103B-08Y900

Active

IRISO USA Inc.

HEADER SMT RA 8POS KEY-A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.65
		10	$ 1.25
		100	$ 0.97
	Digi-Reel®	1	$ 1.65
		10	$ 1.25
		100	$ 0.97
	Tray	350	$ 0.59

Description

General part information

IMSA-13103B Series

Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMSA-13103B-08Y900	IMSA-13103B Series

Connector Type	Plug	Plug
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Finish Thickness - Post	1 çm	1 çm
Contact Finish Thickness - Post	39.4 çin	39.4 çin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Solder Retention	Solder Retention
Insulation Color	Black	Black
Insulation Height	6.5 mm	6.5 mm
Insulation Height	0.256 in	0.256 in
Insulation Material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	8	2 - 20
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	50 VAC	50 VAC

IMSA-13103B Series

HEADER SMT RA 20POS KEY-B

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Contact Finish - Post	Current Rating (Amps)	Style	Insulation Material	Voltage Rating	Number of Positions Loaded	Mounting Type	Insulation Color	Number of Rows	Shrouding	Features	Contact Type	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Material
IRISO USA Inc. IMSA-13103B-20B-TR	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	20	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-12Y901	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	12	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-08Y900	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	8	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-10Y901	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	10	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-02A-TR	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	2	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-02Y901	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	2	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-08Y901	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	8	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-04A-TR	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	4	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-10Y900	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	10	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
IRISO USA Inc. IMSA-13103B-04Y900	1 µm	39.4 µin	125 °C	-40 °C	Latch Holder	Plug	Tin	3 A	Board to Cable/Wire	Polyphenylene Sulfide (PPS)	50 VAC	All	Surface Mount, Right Angle	Black	1	Shrouded - 4 Wall	Solder Retention	Male Pin	Square	1 çm	39.4 çin	4	Solder	0.079 in	2 mm	6.5 mm	0.256 in	Copper Alloy
