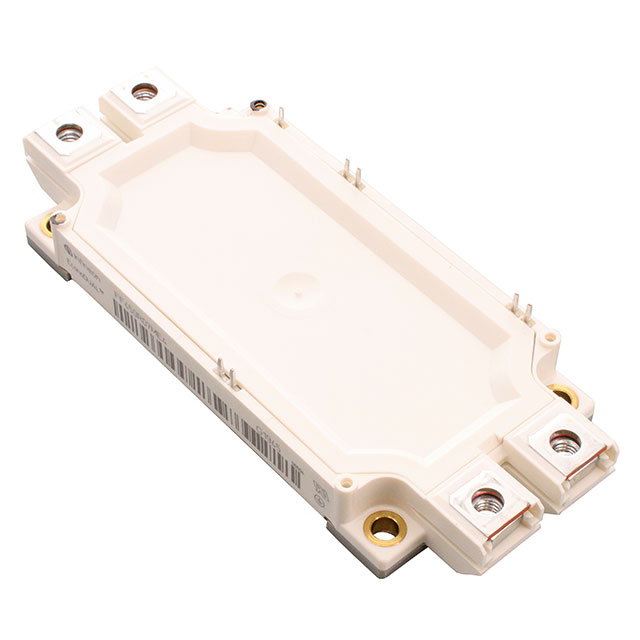

FF450R07ME4BOSA1

Active

Infineon Technologies

THE FF450R07ME4 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 450 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FF450R07ME4 IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 450 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FF450R07ME4BOSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	450 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	27.5 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	AG-ECONOD-3
Vce(on) (Max) @ Vge, Ic	1.95 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max)	Vce(on) (Max) @ Vge, Ic	Input	Power - Max [Max]	Mounting Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	IGBT Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]
Infineon Technologies FF450R07ME4BOSA1	27.5 nF	450 A		650 V	1.95 V	Standard	20 mW	Chassis Mount	2 Independent	150 °C	-40 °C	Module	Trench Field Stop	AG-ECONOD-3	1 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EconoDUAL™ 3650 V, 450 A dualIGBT modulewith TRENCHSTOP IGBT4, Emitter Controlled diode and NTC. Also available withPressFIT contact technology.
