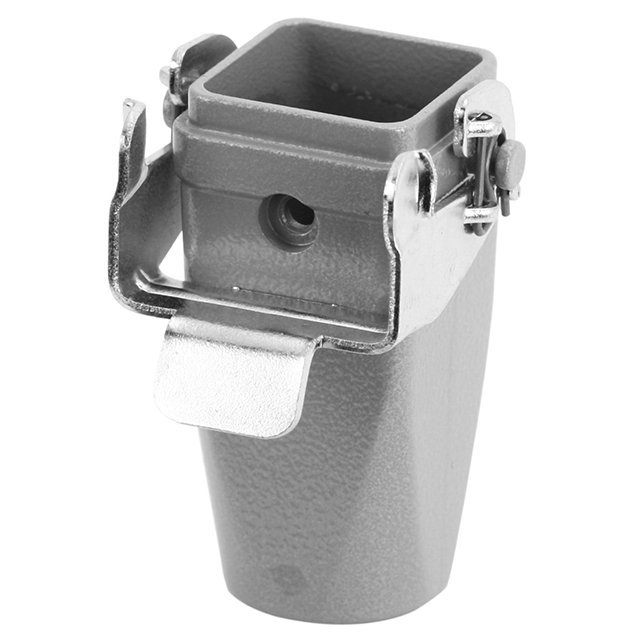

C14630R0038044

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZA3/4

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD CPLNG BOTTOM SZA3/4

Technical Specifications

Parameters and characteristics for this part

Specification	C14630R0038044

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	1.043 "
Size / Dimension [y]	26.5 mm
Size / Dimension [z]	1.969 in
Size / Dimension [z]	50 mm
Style	Bottom Entry
Thread Size	M20

Part	Connector Type	Size	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Style	Lock Location	Features
Amphenol Tuchel Industrial C14630R0038044	Hood - Coupling	A3/4	IP65 - Dust Tight Water Resistant	M20	100 °C	-40 °C	Aluminum Alloy Die Cast	1.043 "	26.5 mm	1.969 in	1.043 in	26.5 mm	50 mm	Bottom Entry	Locking Clip (1) on Base Bottom	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry M20 A3/4 IP65 - Dust Tight, Water Resistant
